440PB - Interface C - Coupling connector
440PB - Interface C - Coupling connector
Up to 42 kV - 630 A (1250 A)

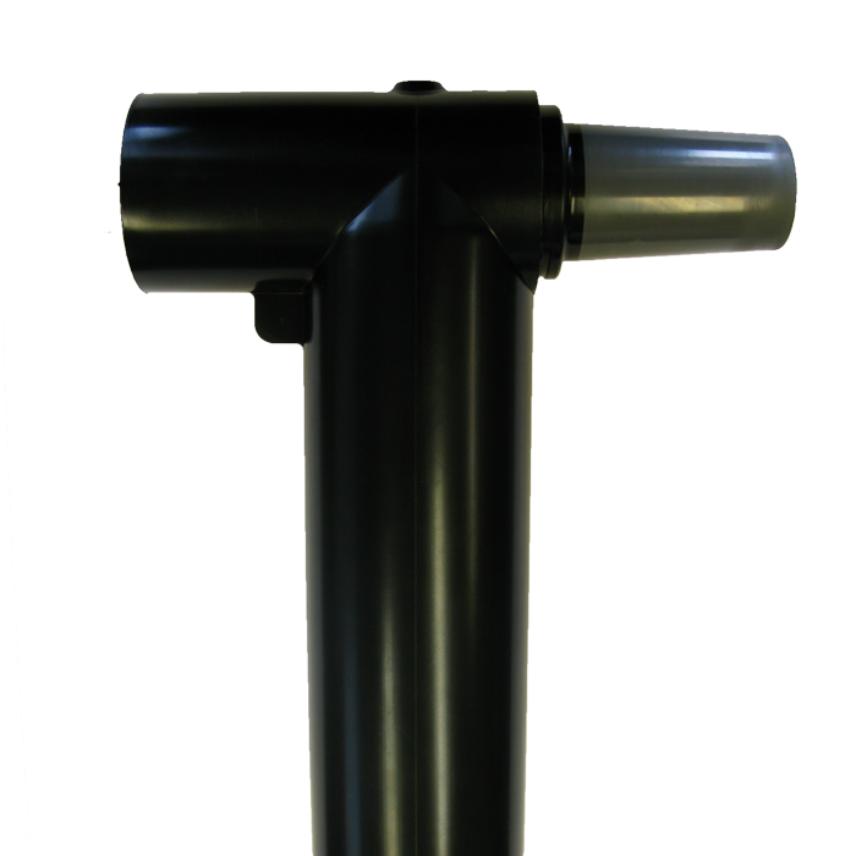

EUROMOLD Coupling connector for 440TB
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
-
InternationalIEC 60137
Application
Separable coupling connector (bolted type) for dual cable arrangement. It has been designed to be used with 440TB separable Tee connector.
Technical characteristics
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Male
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
185 ... 630 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
Separable screened connector systems
pdf — 2.7 MB
440PB catalogue page
pdf — 594.0 kB
440PB installation instruction
pdf — 1.1 MB
