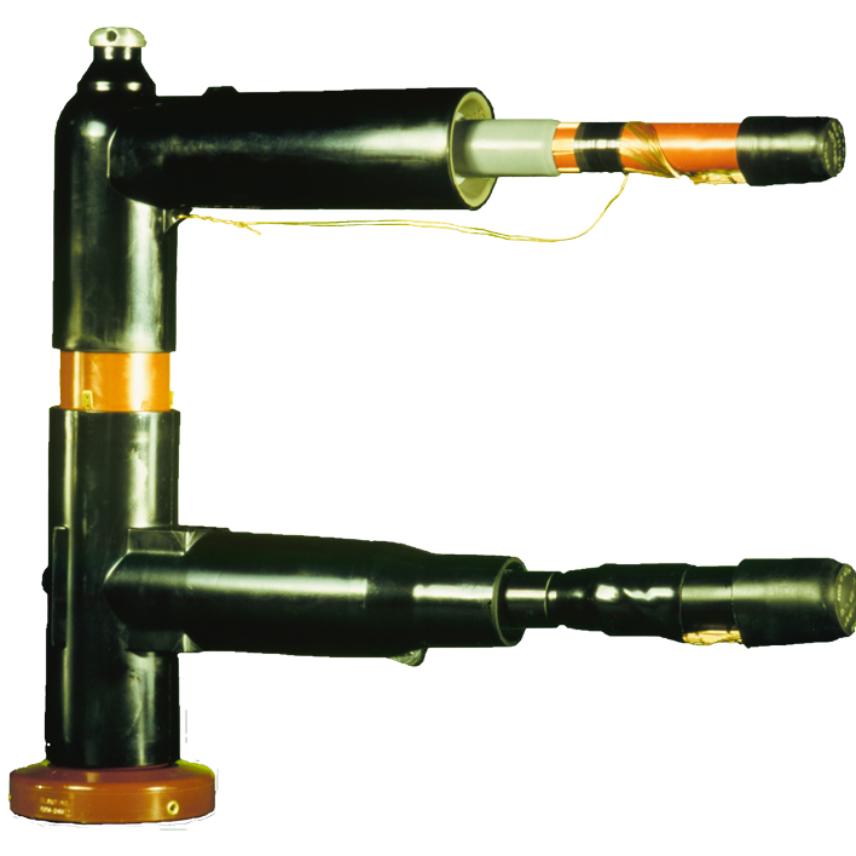

400LB - Interface C - Elbow connector
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
-
InternationalIEC 60137
Application
Separable elbow connector designed to connect polymeric
insulated cable to equipment (transformers, switchgear,
motors...). Also connects cable to cable, using the appropriate mating part.
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Elbow
Connector type
Outer cone
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
25 ... 300 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
400LB catalogue page
pdf — 444.3 kB
Separable screened connector systems
pdf — 2.7 MB
400LB installation instruction
pdf — 251.8 kB
