MONO Heatshrink Terminations (up to 42kV)

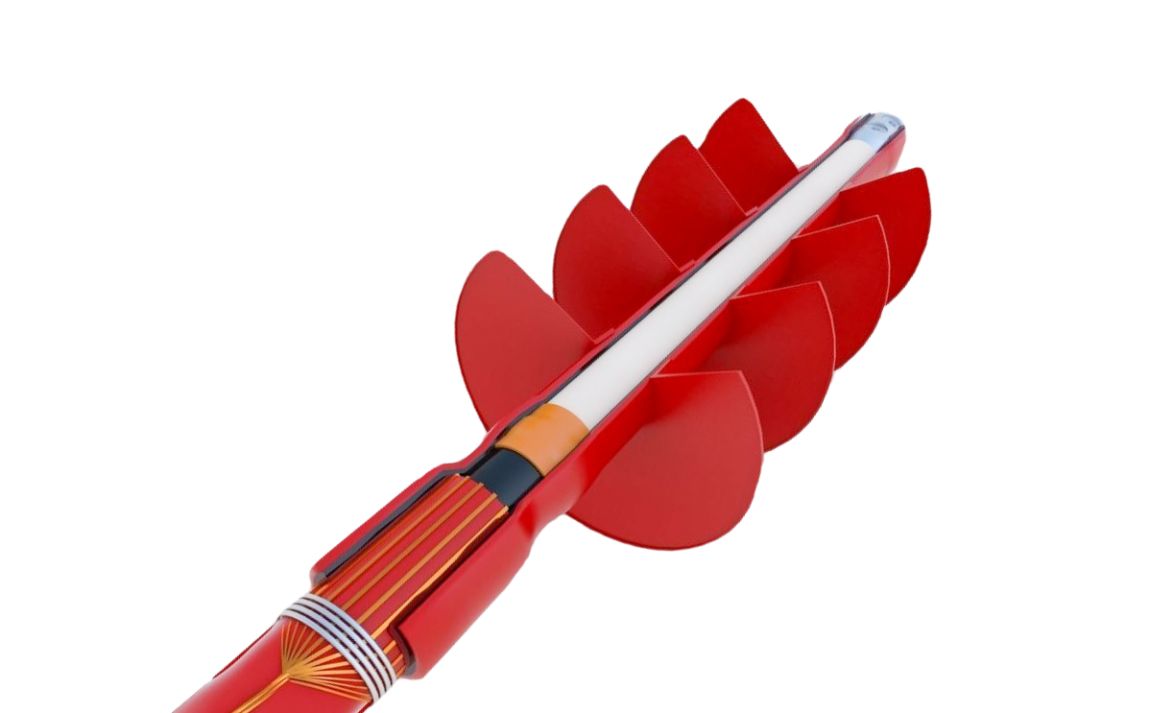

The Nexans MONO Terminations are a one tube solution on XLPE insulated polymeric cables with copper wire or copper tape screens. They consist of a dual-wall tube that has an inner stress control and outer anti-tracking layer.

This design enables an easy and quick install, reducing installation time and errors.

Features:

• MONOi (Indoor) and MONOe (Outdoor) versions available
• Product range available for single and three core cables
• Accommodate cable up to 630mm²
• Available with either crimp or mechanical shear off lugs
• Available in 12kV, 24kV, 36kV & 42kV
• Separate kit for armoured cables available
• Compact overall length compared to older technologies
• Type Tested to Cenelec HD 629.1 S2 and AS4805.1
• 200kV BIL Rated

Typical applications include installations were space is limited like compact switchgear.

Watch the installation video:  INDOOR / OUTDOOR
