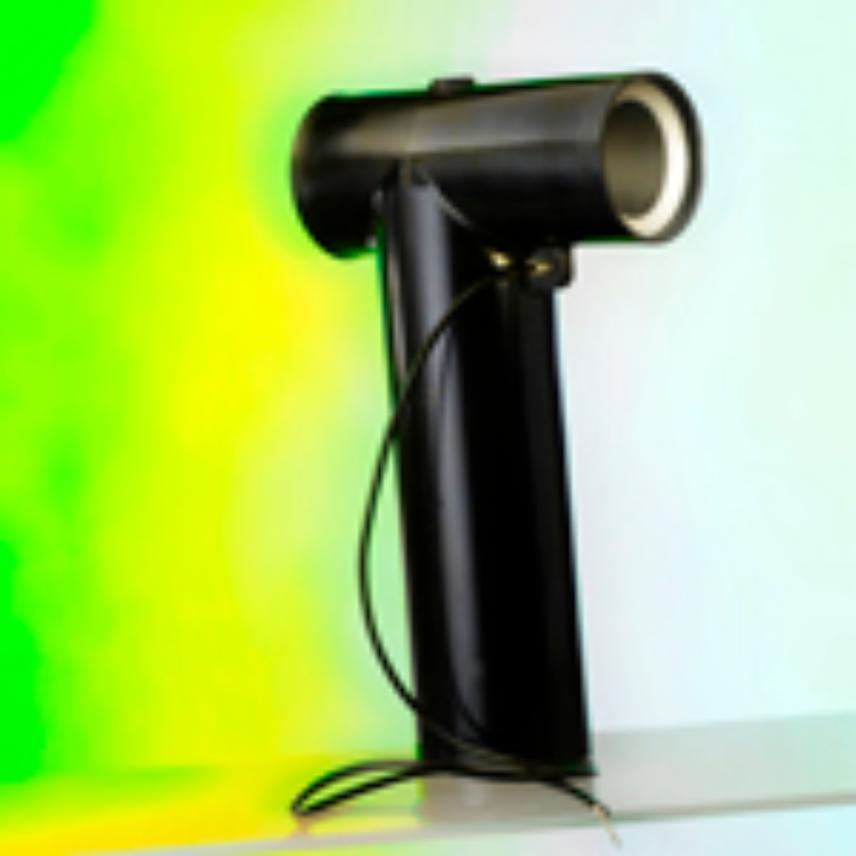

484TB - Interface C - Tee connector
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
-
InternationalIEC 60137
Application
Separable tee shape connector (bolted type) designed to connect polymeric
insulated cable to equipment (transformers, switchgear, motors, ...).
Also connects cable to cable when using the appropriate mating parts.
Technical characteristics
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
These products are part of our windlink® offer dedicated to windturbines.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
T-shaped
Connector type
Outer cone
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 630 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
484TB catalogue page
pdf — 604.7 kB
484TB/G installation instruction
pdf — 847.8 kB
484TB test certificate
pdf — 240.6 kB
