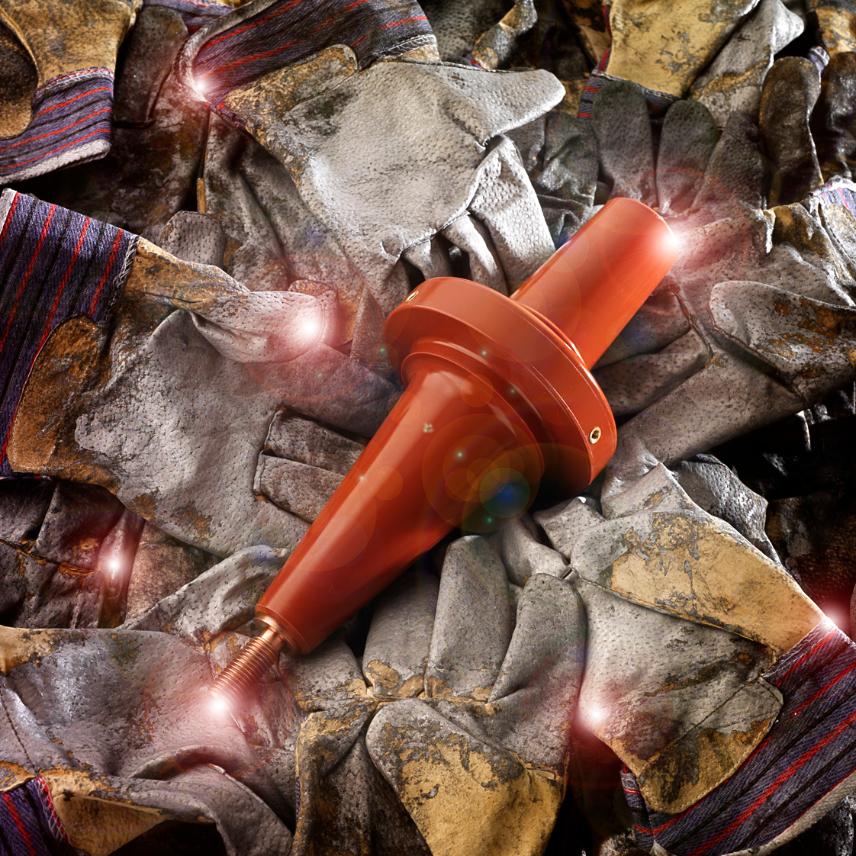

400A-24B - Interface C - In-air bushing
Description
Description
Standards
-
ProductCENELEC EN 50180
-
InternationalIEC 60137
Application
For use in equipment insulated air, typically for dry type transformers, motors, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving
the factory.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Bushing
Connector type
Male
Conductor material
Copper
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
0 ... 0 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
57 kV
Impulse voltage
125 kV
Usage characteristics
Usage characteristics
Interface
C (630 - 1250 A)
Resources
Resources
Documentation
400A-24B catalogue page
pdf — 301.5 kB
Separable screened connector systems
pdf — 2.7 MB
400A-24B installation instruction
pdf — 291.9 kB
