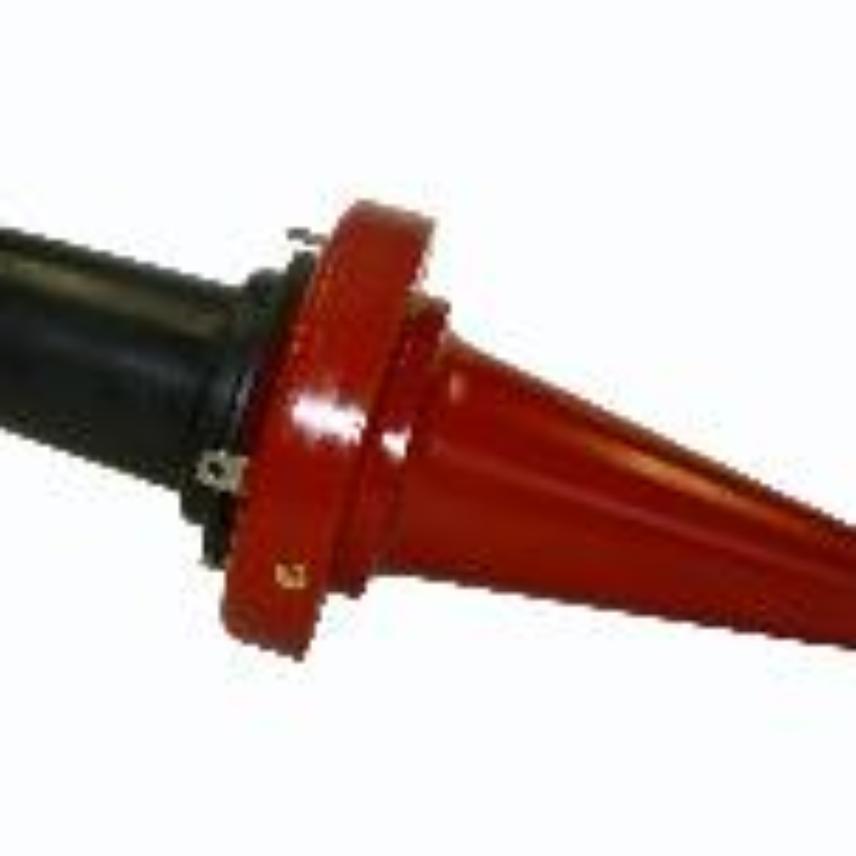

400T1/400AR-1/400AR-2 - Interface B - Equipment bushings
400T1/400AR-1/400AR-2 - Interface B - Equipment bushings
Up to 36 kV - 400 A
EUROMOLD Equipment bushings
Description
Description
Application
For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the
factory.
factory.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Connector shape
Bushing
Connector type
-
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
0 ... 0 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
81 kV
Impulse voltage
170 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
18 / 30 (36) kV
Usage characteristics
Usage characteristics
Interface
B (400 A)
Resources
Resources
Documentation
400T1/400AR-1/400AR-2 catalogue page
pdf — 730.5 kB
Separable screened connector systems
pdf — 2.7 MB
400T1+400AR-1 installation instruction
pdf — 404.4 kB
