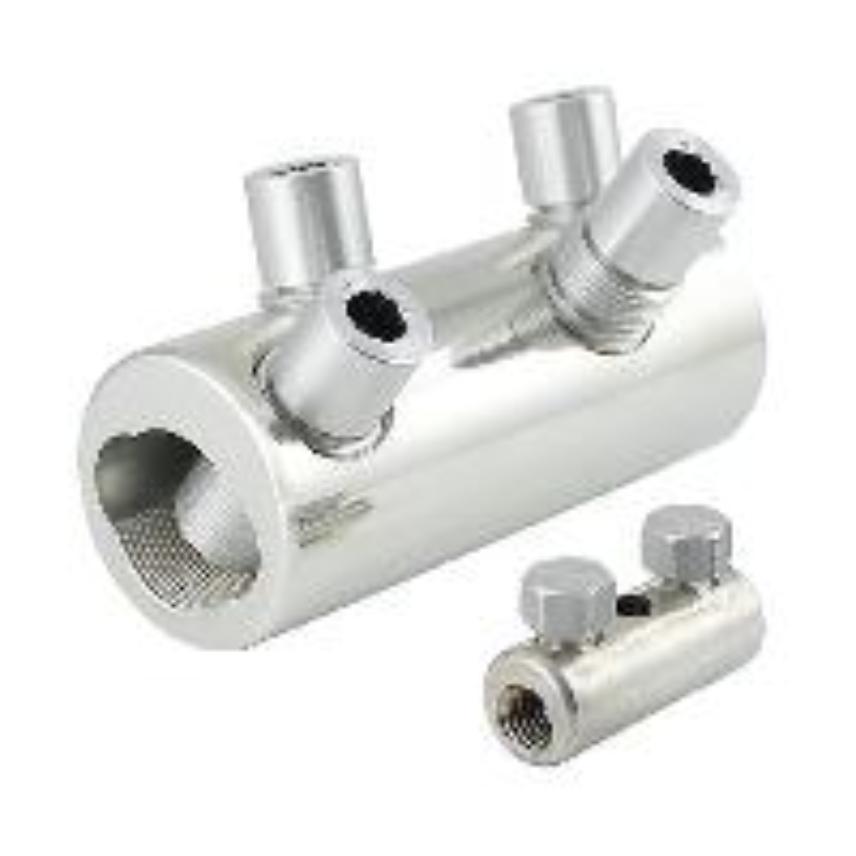

Mechanical Connectors 0.6/1 kV (D-Series)

With the low-voltage mechanical connectors of the D-Series, both identical and different conductor cross-sections can be implemented in the area of application, irrespective of the conductor material, shape and design. A total of seven connector sizes are available.


Connector Body
Material:
high strength aluminum alloy
Type:
D...-S:    with inspection hole
D...-T:    with oil stop
Surface:
D...-V:    tin-plated

Bolts
Material:
high strength aluminum alloy
Surface:
uncoated
Type:
D...:        with hexagon socket bolts
D...-K:    with shear-off-head bolts

Advantages
Simple, quick installation:
With common commercially available inner and outer hexagon tools or an approved impact wrench.


Minimum storage costs: The cross-sectional area from 1.5 mm² to 240 mm² is covered by just 3 types of connectors.


Universal applicability:
Can be used for copper and aluminium conductors according to EN 60228 classes 1 & 2. For use of our mechanical connectors with class 5 flexible copper conductors, please contact us.


Proven quality:
Our D-series connectors are a consistent further development of the long-term proven and tested SV-series.
