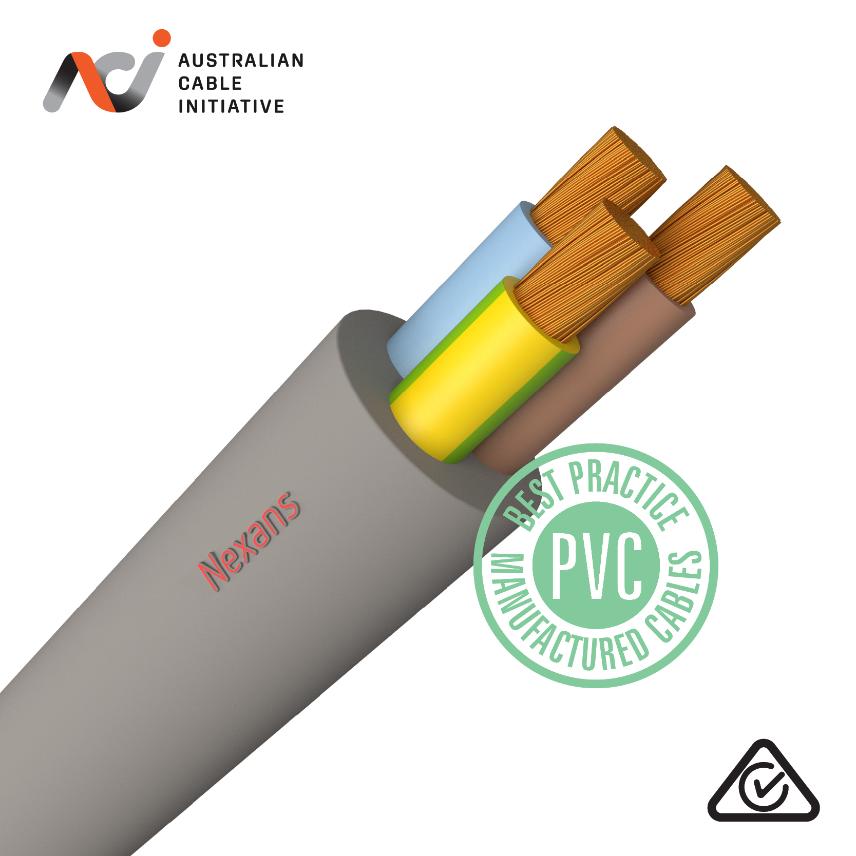

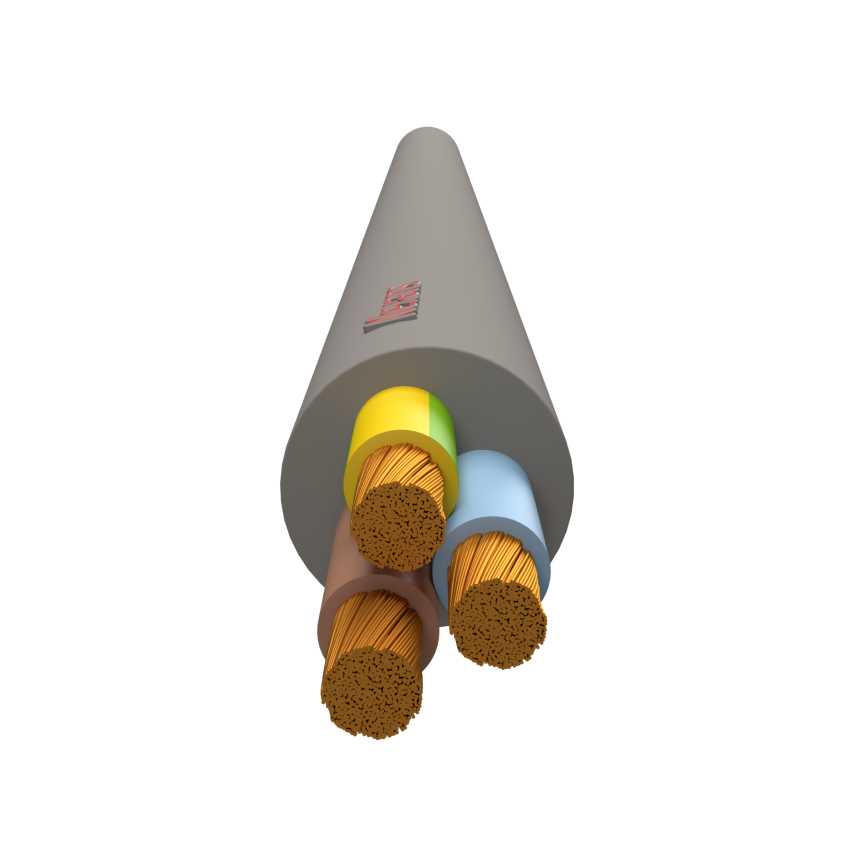

POWERLEX® PVC Multicore Flexible Ordinary Duty Cords
POWERLEX® PVC Multicore Flexible Ordinary Duty Cords
2, 3, 4C + E flexible copper conductors, 250/440V V-90 insulated and sheathed ordinary duty cord to AS/NZS 3191 and AS/NZS 60227
Read more2X0.75mm2 Powerlex OD Grey
Nexans ref. CAHR02A1002GYAA - Country ref. CAHR02A1002GYAA
- Colour: Grey
- Conductor cross-section: 0.75 mm²
- Number of cores: 2
- Number of earth cores: 0
2X0.75mm2 Powerlex OD White
Nexans ref. CAHR02A1002KKAA - Country ref. CAHR02A1002KKAA
- Colour: White
- Conductor cross-section: 0.75 mm²
- Number of cores: 2
- Number of earth cores: 0
3X0.75mm2 (2C+E) Powerlex OD Black
Nexans ref. EAHR02A1003BKAA - Country ref. EAHR02A1003BKAA
- Colour: Black
- Conductor cross-section: 0.75 mm²
- Number of cores: 3
- Number of earth cores: 1
3X0.75mm2 (2C+E) Powerlex OD Grey
Nexans ref. EAHR02A1003GYAA - Country ref. EAHR02A1003GYAA
- Colour: Grey
- Conductor cross-section: 0.75 mm²
- Number of cores: 3
- Number of earth cores: 1
3X0.75mm2 (2C+E) Powerlex OD White
Nexans ref. EAHR02A1003KKAA - Country ref. EAHR02A1003KKAA
- Colour: White
- Conductor cross-section: 0.75 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.0mm2 (2C+E) Powerlex OD Grey
Nexans ref. EAHR03A1003GYAA - Country ref. EAHR03A1003GYAA
- Colour: Grey
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.0mm2 (2C+E) Powerlex OD White
Nexans ref. EAHR03A1003KKAA - Country ref. EAHR03A1003KKAA
- Colour: White
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.5mm2 (2C+E) Powerlex OD Black
Nexans ref. EAHR04A1003BKAA - Country ref. EAHR04A1003BKAA
- Colour: Black
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.5mm2 (2C+E) Powerlex OD Grey
Nexans ref. EAHR04A1003GYAA - Country ref. EAHR04A1003GYAA
- Colour: Grey
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.5mm2 (2C+E) Powerlex OD Orange
Nexans ref. EAHR04A1003OGAA - Country ref. EAHR04A1003OGAA
- Colour: Orange
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X1.5mm2 (2C+E) Powerlex OD White
Nexans ref. EAHR04A1003KKAA - Country ref. EAHR04A1003KKAA
- Colour: White
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X2.5mm2 (2C+E) Powerlex OD Black
Nexans ref. EAHR05A1003BKAA - Country ref. EAHR05A1003BKAA
- Colour: Black
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X2.5mm2 (2C+E) Powerlex OD Grey
Nexans ref. EAHR05A1003GYAA - Country ref. EAHR05A1003GYAA
- Colour: Grey
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X2.5mm2 (2C+E) Powerlex OD Orange
Nexans ref. EAHR05A1003OGAA - Country ref. EAHR05A1003OGAA
- Colour: Orange
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Number of earth cores: 1
3X4mm2 + (2C+E) Powerlex OD Grey
Nexans ref. EAHR06A1003GYAA - Country ref. EAHR06A1003GYAA
- Colour: Grey
- Conductor cross-section: 4 mm²
- Number of cores: 3
- Number of earth cores: 1
4X1.0mm2 (3C+E) Powerlex OD Grey
Nexans ref. GAHR03A1004GYAA - Country ref. GAHR03A1004GYAA
- Colour: Grey
- Conductor cross-section: 1 mm²
- Number of cores: 4
- Number of earth cores: 1
4X1.5mm2 (3C+E) Powerlex OD Grey
Nexans ref. GAHR04A1004GYAA - Country ref. GAHR04A1004GYAA
- Colour: Grey
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Number of earth cores: 1
4X4mm2 (3C+E) Powerlex OD Grey
Nexans ref. GAHR06A1004GYAA - Country ref. GAHR06A1004GYAA
- Colour: Grey
- Conductor cross-section: 4 mm²
- Number of cores: 6
- Number of earth cores: 1
4X4mm2 (3C+E) Powerlex OD Orange
Nexans ref. GAHR06A1004OGAA - Country ref. GAHR06A1004OGAA
- Colour: Orange
- Conductor cross-section: 4 mm²
- Number of cores: 6
- Number of earth cores: 1
5 X1.5mm2 (4C +E) Powerlex OD Black
Nexans ref. APAR04A1005BKAA - Country ref. APAR04A1005BKAA
- Colour: Black
- Conductor cross-section: 1.5 mm²
- Number of cores: 5
- Number of earth cores: 1
5 x 4mm2 (4C+E) Powerlex OD Black
Nexans ref. APAR06A1005BKAA - Country ref. APAR06A1005BKAA
- Colour: Black
- Conductor cross-section: 4 mm²
- Number of cores: 5
- Number of earth cores: 1
Description
Description
Standards
-
ProductAS/NZS 3191; AS/NZS 60227
250/440V V-90 insulated and sheathed ordinary duty flexible cord to AS/NZS 3191 and AS/NZS 60227 and to PVC Best Practice Guidelines.
- 250/440V
- V-90 insulated and sheathed ordinary duty flexible cord to AS/NZS 3191 and AS/NZS 60227.
Note: V-90HT is available on request subject to minimum production runs.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
Current carrying capacities single phase (in Amps)
Insulation type: Thermoplastic
Maximum conductor temperature: 75°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 15 | 14 | 11 | 7 | 13 | 10 | 6 | 22 | 17 |
| 1.5 | 19 | 18 | 14 | 9 | 16 | 13 | 8 | 28 | 21 |
| 2.5 | 27 | 26 | 20 | 13 | 23 | 19 | 12 | 40 | 30 |
| 4.0 | 37 | 34 | 27 | 17 | 30 | 24 | 15 | 52 | 39 |
| 6.0 | 46 | 44 | 35 | 22 | 39 | 31 | 20 | 65 | 50 |
| 10.0 | 64 | 60 | 48 | 30 | 52 | 42 | 26 | 87 | 66 |
| 16.0 | 85 | 80 | 64 | 40 | 68 | 54 | 34 | 114 | 86 |
| 25.0 | 113 | 107 | 85 | 53 | 90 | 72 | 45 | 147 | 112 |
| 35.0 | 139 | 131 | 105 | 65 | 112 | 90 | 56 | 178 | 136 |
| 50.0 | 170 | 159 | 127 | 0 | 133 | 107 | 0 | 211 | 162 |
| 70.0 | 215 | 201 | 161 | 0 | 170 | 136 | 0 | 259 | 202 |
| 95.0 | 265 | 248 | 198 | 0 | 204 | 163 | 0 | 311 | 243 |
| 120.0 | 307 | 288 | 230 | 0 | 241 | 192 | 0 | 355 | 282 |
| 150.0 | 351 | 328 | 263 | 0 | 271 | 217 | 0 | 398 | 317 |
| 185.0 | 403 | 377 | 302 | 0 | 313 | 250 | 0 | 449 | 363 |
| 240.0 | 477 | 446 | 357 | 0 | 364 | 291 | 0 | 520 | 421 |
| 300.0 | 547 | 511 | 409 | 0 | 424 | 340 | 0 | 586 | 483 |
| 400.0 | 631 | 589 | 471 | 0 | 482 | 386 | 0 | 663 | 548 |
| 500.0 | 716 | 668 | 534 | 0 | 561 | 449 | 0 | 741 | 628 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts |
Current carrying capacities three phase (in Amps)
Insulation type: Thermoplastic
Maximum conductor temperature: 75°C
Reference ambient temperature: 40°C IN AIR, 25°C IN GROUND
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 13 | 12 | 9 | 6 | 11 | 9 | 5 | 19 | 14 |
| 1.5 | 16 | 15 | 12 | 8 | 14 | 11 | 7 | 24 | 18 |
| 2.5 | 23 | 22 | 17 | 11 | 20 | 16 | 10 | 34 | 25 |
| 4.0 | 31 | 29 | 23 | 15 | 25 | 20 | 13 | 44 | 33 |
| 6.0 | 40 | 37 | 30 | 19 | 33 | 26 | 16 | 55 | 42 |
| 10.0 | 54 | 51 | 41 | 25 | 44 | 35 | 22 | 74 | 55 |
| 16.0 | 72 | 68 | 54 | 34 | 58 | 47 | 29 | 96 | 73 |
| 25.0 | 97 | 91 | 73 | 46 | 76 | 60 | 38 | 125 | 94 |
| 35.0 | 120 | 112 | 90 | 56 | 94 | 75 | 47 | 150 | 114 |
| 50.0 | 146 | 137 | 109 | 0 | 112 | 89 | 0 | 178 | 136 |
| 70.0 | 185 | 172 | 138 | 0 | 142 | 114 | 0 | 219 | 170 |
| 95.0 | 228 | 213 | 170 | 0 | 177 | 142 | 0 | 263 | 208 |
| 120.0 | 265 | 247 | 198 | 0 | 202 | 162 | 0 | 300 | 237 |
| 150.0 | 303 | 282 | 226 | 0 | 228 | 182 | 0 | 336 | 266 |
| 185.0 | 348 | 324 | 259 | 0 | 263 | 211 | 0 | 379 | 304 |
| 240.0 | 412 | 383 | 307 | 0 | 316 | 253 | 0 | 438 | 359 |
| 300.0 | 472 | 438 | 0 | 0 | 0 | 0 | 0 | 493 | 404 |
| 400.0 | 544 | 504 | 0 | 0 | 0 | 0 | 0 | 557 | 468 |
| 500.0 | 616 | 571 | 0 | 0 | 0 | 0 | 0 | 620 | 522 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground ducts A |
