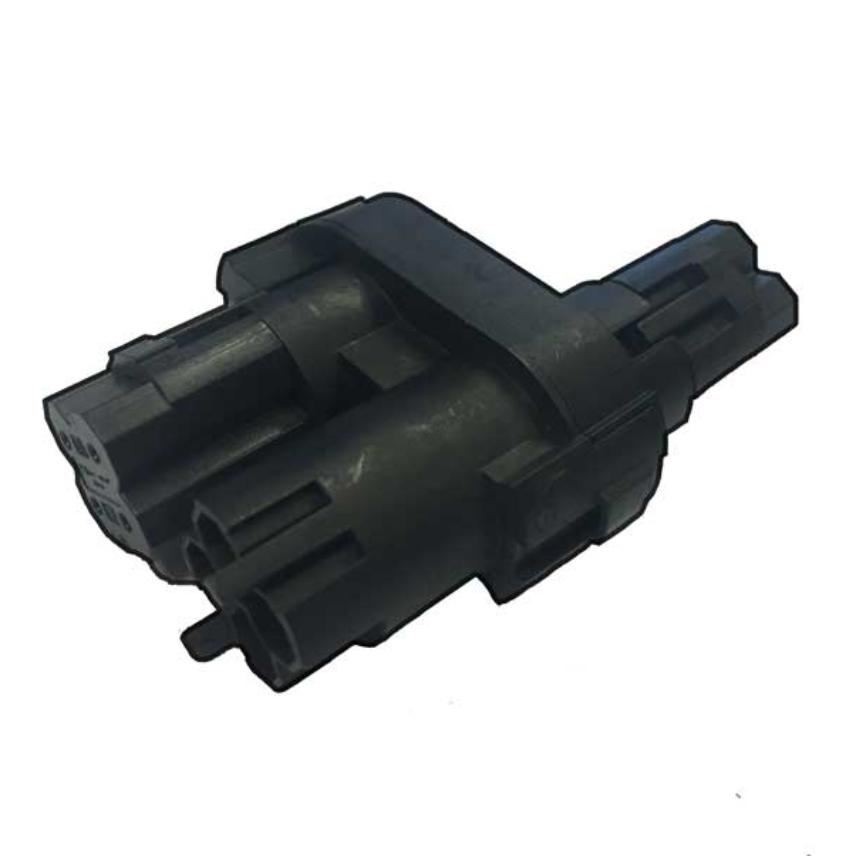

3 Pole 1.5mm² Splitter T
Nexans ref. A1.4.293628-4 - Country ref. A1.4.293628-4
- Packaging: Unit
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 1.5 mm²

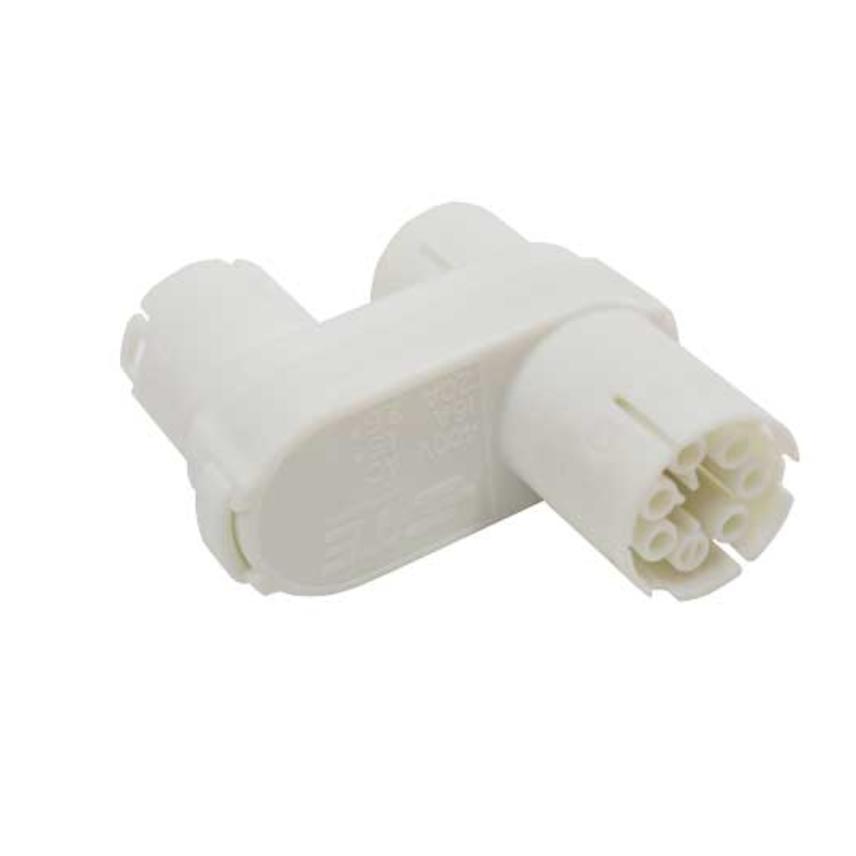

3 Pole 2.5mm² Splitter T
Nexans ref. A1.4.293628-5 - Country ref. A1.4.293628-5
- Packaging: Unit
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 2.5 mm²

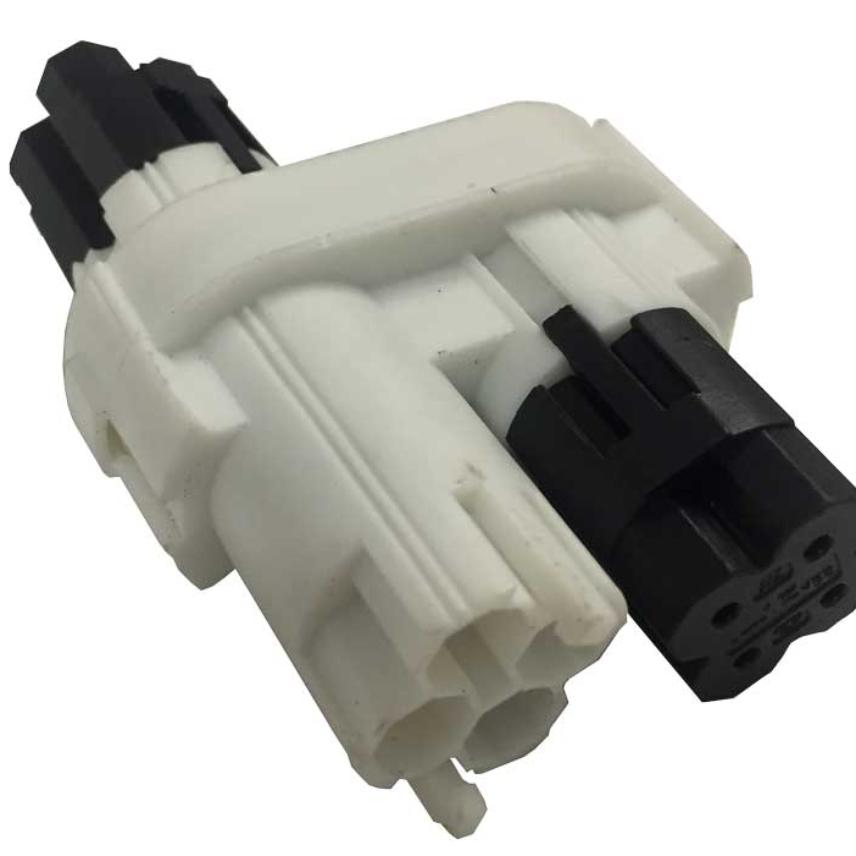

5 Pole 2.5mm² Splitter T
Nexans ref. A1.4.1879997-2 - Country ref. A1.4.1879997-2
- Packaging: Unit
- Approximate weight: 0.06 kg/m
- Conductor cross-section: 2.5 mm²
Description
Description
Standards
-
NationalAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the Secondary Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
- No# Conductors: 5wire. Conductor Size: 1.5mm2 (10A), 2.5mm (20A). TEE: 3way
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Secondary Wiring
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
- Modular Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
240 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
85 °C
Resources
Resources
Documentation
A1_1.4.293628-4_3p Lighting Splitter
docx — 2.6 MB
A1_1.4.293628-5_3p Lighting-Power Splitter
docx — 2.4 MB
A1_1.4.1879997-2_5p Lighting Splitter
docx — 2.6 MB
