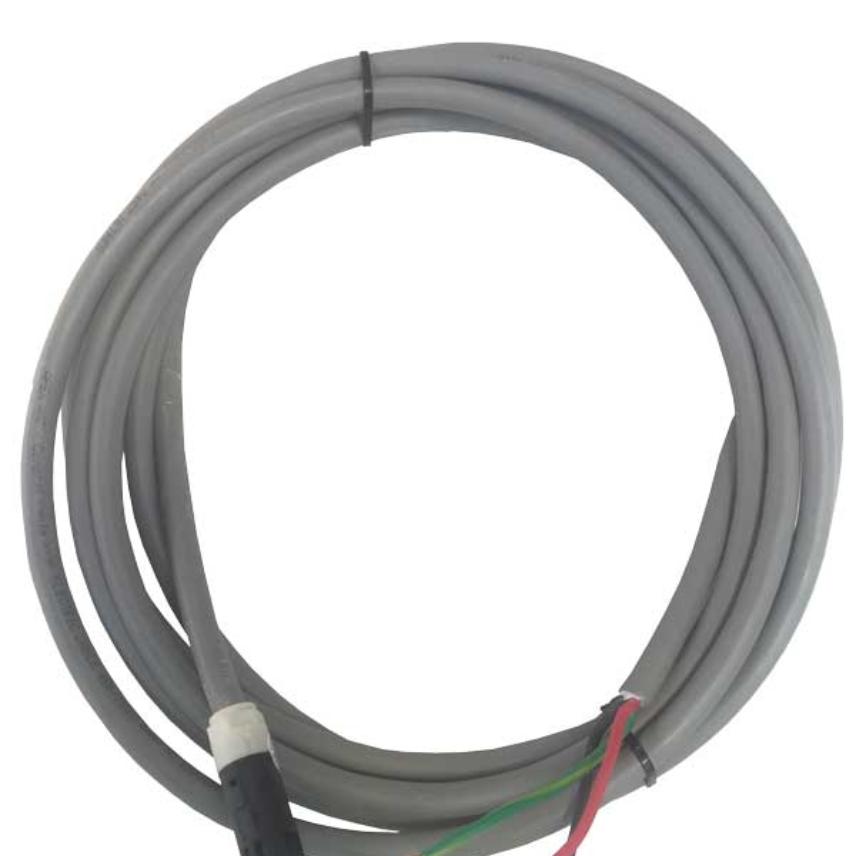

Power Connector Leads
Power Connector Leads
Connector Lead for Power Circuits Low Fire Hazard (XLPE) Cable
Read more10m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.100 - Country ref. A1.2.3C6.000.4.100
- Packaging: Unit
- Approximate weight: 2.22 kg/m
11m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.110 - Country ref. A1.2.3C6.000.4.110
- Packaging: Unit
- Approximate weight: 2.44 kg/m
12m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.120 - Country ref. A1.2.3C6.000.4.120
- Packaging: Unit
- Approximate weight: 2.66 kg/m
1m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.010 - Country ref. A1.2.3C6.000.4.010
- Packaging: Unit
- Approximate weight: 0.24 kg/m
2m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.020 - Country ref. A1.2.3C6.000.4.020
- Packaging: Unit
- Approximate weight: 0.46 kg/m
300mm Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.003 - Country ref. A1.2.3C6.000.4.003
- Packaging: Unit
- Approximate weight: 0.08 kg/m
300mm Starter cable (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.000.3C6.4.003 - Country ref. A1.2.000.3C6.4.003
- Packaging: Unit
- Approximate weight: 0.08 kg/m
3m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.030 - Country ref. A1.2.3C6.000.4.030
- Packaging: Unit
- Approximate weight: 0.68 kg/m
4m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.040 - Country ref. A1.2.3C6.000.4.040
- Packaging: Unit
- Approximate weight: 0.9 kg/m
5m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.050 - Country ref. A1.2.3C6.000.4.050
- Packaging: Unit
- Approximate weight: 1.12 kg/m
6m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.060 - Country ref. A1.2.3C6.000.4.060
- Packaging: Unit
- Approximate weight: 1.34 kg/m
7m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.070 - Country ref. A1.2.3C6.000.4.070
- Packaging: Unit
- Approximate weight: 1.56 kg/m
8m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.080 - Country ref. A1.2.3C6.000.4.080
- Packaging: Unit
- Approximate weight: 1.78 kg/m
9m Connector Cable - (2C+E x 4.0mm², 3P)
Nexans ref. A1.2.3C6.000.4.090 - Country ref. A1.2.3C6.000.4.090
- Packaging: Unit
- Approximate weight: 2 kg/m
Description
Description
Standards
-
InstallationAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the Accessory & Connector Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2
Constructions and features
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
- Rating: 20amp. No# Conductors: 3wire. Conductor Size: 4.0mm
Benefits and applications
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Board Connections
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
- Modular Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
