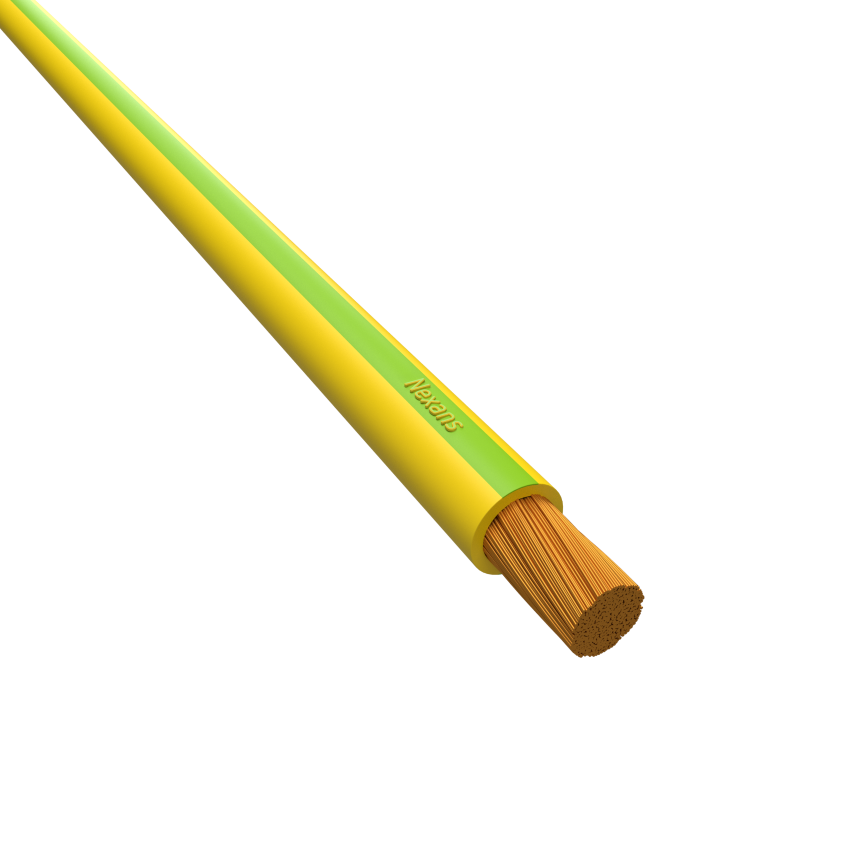

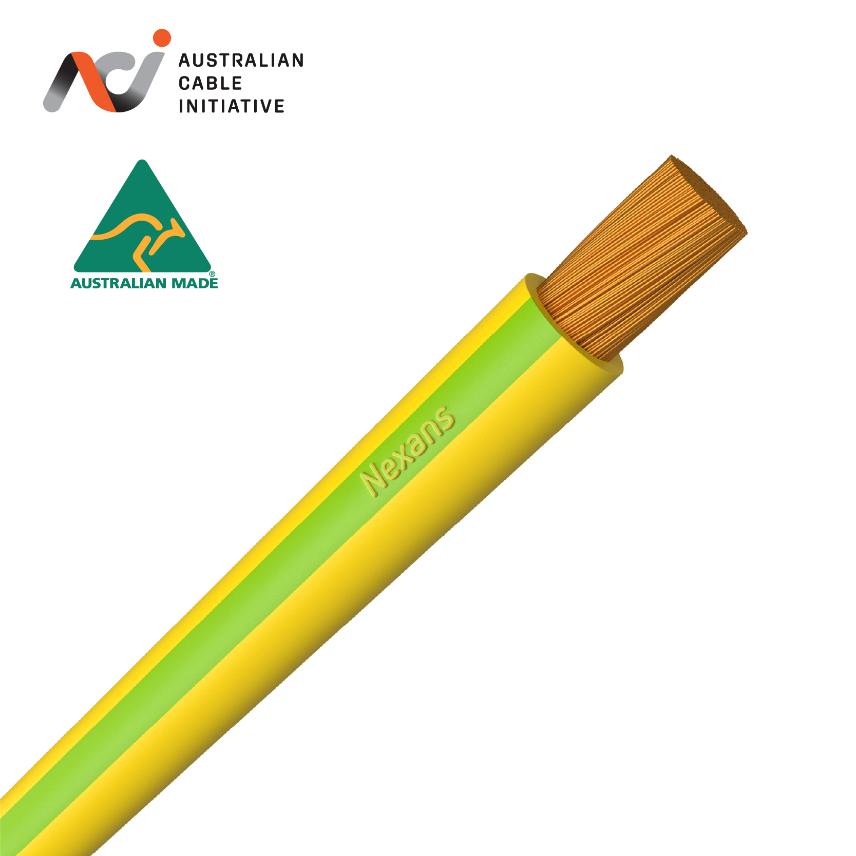

Nexans Flexs Flexible LSZH Earth
Nexans Flexs Flexible LSZH Earth
One core flexible multiple stranded plain annealed copper, 0.6/1 kV, 90°C, Low-Smoke Zero-Halogen thermoplastic, insulated flexible earth cable. For use with Envirolex or Alsecure Plus Cables.
Read moreOlex-Flexs LSZH Earth 0.6/1kV 10mm2 Green/Yellow
Nexans ref. BAAX01JA001AAHT - Country ref. BAAX01JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Maximum Pulling Tension: 0.2 kN
- Minimum Bend Radius - During Installation (under Tension): 38 mm
- Minimum Bend Radius - Installed: 19 mm
Olex-Flexs LSZH Earth 0.6/1kV 16mm2 Green/Yellow NEW
Nexans ref. BAAX02JA001AAHT - Country ref. BAAX02JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Maximum Pulling Tension: 0.32 kN
- Minimum Bend Radius - During Installation (under Tension): 44 mm
- Minimum Bend Radius - Installed: 22 mm
Olex-Flexs LSZH Earth 0.6/1kV 25mm2 Green/Yellow NEW
Nexans ref. BAAX03JA001AAHT - Country ref. BAAX03JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Maximum Pulling Tension: 0.5 kN
- Minimum Bend Radius - During Installation (under Tension): 54 mm
- Minimum Bend Radius - Installed: 27 mm
Olex-Flexs LSZH Earth 0.6/1kV 35mm2 Green/Yellow
Nexans ref. BAAX04JA001AAHT - Country ref. BAAX04JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Maximum Pulling Tension: 0.7 kN
- Minimum Bend Radius - During Installation (under Tension): 61 mm
- Minimum Bend Radius - Installed: 41 mm
Olex-Flexs LSZH Earth 0.6/1kV 50mm2 Green/Yellow
Nexans ref. BAAX05JA001AAHT - Country ref. BAAX05JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Maximum Pulling Tension: 1 kN
- Minimum Bend Radius - During Installation (under Tension): 73 mm
- Minimum Bend Radius - Installed: 49 mm
Olex-Flexs LSZH Earth 0.6/1kV 70mm2 Green/Yellow
Nexans ref. BAAX63JA001AAHT - Country ref. BAAX63JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Maximum Pulling Tension: 1.4 kN
- Minimum Bend Radius - During Installation (under Tension): 83 mm
- Minimum Bend Radius - Installed: 56 mm
Olex-Flexs LSZH Earth 0.6/1kV 95mm2 Green/Yellow
Nexans ref. BAAX64JA001AAHT - Country ref. BAAX64JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Maximum Pulling Tension: 1.9 kN
- Minimum Bend Radius - During Installation (under Tension): 96 mm
- Minimum Bend Radius - Installed: 64 mm
Olex-Flexs LSZH Earth 0.6/1kV 120mm2 Green/Yellow
Nexans ref. BAAE87JA001AAHT - Country ref. BAAE87JA001AAHT
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Maximum Pulling Tension: 2.4 kN
- Minimum Bend Radius - During Installation (under Tension): 109 mm
- Minimum Bend Radius - Installed: 73 mm
Description
Description
Standards
-
ProductAS/NZS 1125; AS/NZS 5000.1
One core flexible multiple stranded plain annealed copper, 0.6/1 kV, 90°C, Low Fire Hazard, thermoplastic, insulated flexible earth cable.
For use with Envirolex or Alsecure Plus Cables.
RHE-3 to AS/NZS 4507
