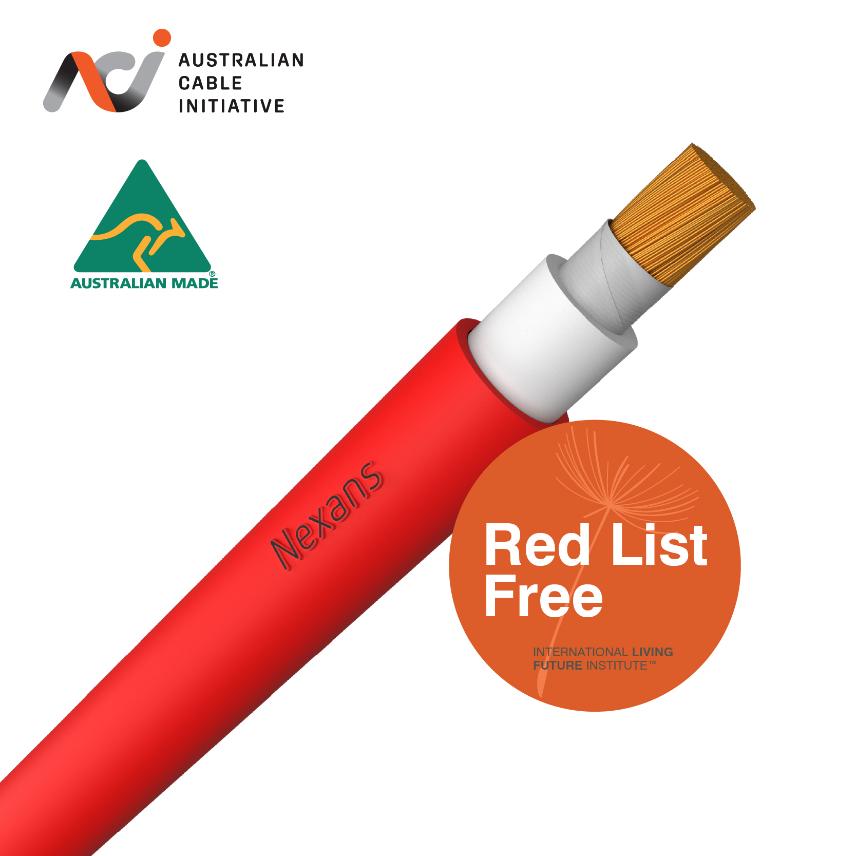

Fire Resistant (FR) Single Core
Fire Resistant (FR) Single Core
ALSECURE®
Nexans Fire Resistant (FR) Single Core cables are a range of Fire Rated single core products for use in mains and sub-mains applications. ALSECURE® utilizes the tried and true Glass Mica Tape technology. The tape barrier provides circuit integrity in accordance with AS/NZS 3013 WS52W. 0.6/1kV Rated Single Core Fire Rated Power Cable.
Read moreFR SDI XHF 1X10 FCu HFS RD 110 WS52W
Nexans ref. PFLX01AA001JBNA - Country ref. PFLX01AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Nominal overall diameter: 9.6 mm
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.2 kN
- Minimum Bend Radius - During Installation (under Tension): 86 mm
- Minimum Bend Radius - Installed: 58 mm
FR SDI XHF 1X120 FCu HFS RD 110 WS52W
Nexans ref. PFLE87AA001JBNA - Country ref. PFLE87AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 21.7 mm
- Max. DC resistance of the conductor at 20°C: 0.161 Ohm/km
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 2.4 kN
- Minimum Bend Radius - During Installation (under Tension): 200 mm
- Minimum Bend Radius - Installed: 130 mm
FR SDI XHF 1X150 FCu HFS RD 110 WS52W
Nexans ref. PFLE88AA001JBNA - Country ref. PFLE88AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 23.6 mm
- Max. DC resistance of the conductor at 20°C: 0.129 Ohm/km
- Maximum Pull Tension of Conductor: 3 kN
- Maximum Pulling Tension: 2.83 kN
- Minimum Bend Radius - During Installation (under Tension): 210 mm
- Minimum Bend Radius - Installed: 140 mm
FR SDI XHF 1X16 FCu HFS RD 110 WS52W
Nexans ref. PFLX02AA001JBNA - Country ref. PFLX02AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.8 mm
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.32 kN
- Minimum Bend Radius - During Installation (under Tension): 97 mm
- Minimum Bend Radius - Installed: 65 mm
FR SDI XHF 1X185 FCu HFS RD 110 WS52W
Nexans ref. PFLE89AA001JBNA - Country ref. PFLE89AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 26.3 mm
- Max. DC resistance of the conductor at 20°C: 0.106 Ohm/km
- Maximum Pull Tension of Conductor: 4 kN
- Maximum Pulling Tension: 3.16 kN
- Minimum Bend Radius - During Installation (under Tension): 320 mm
- Minimum Bend Radius - Installed: 210 mm
FR SDI XHF 1X240 FCu HFS RD 110 WS52W
Nexans ref. PFLE90AA001JBNA - Country ref. PFLE90AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 29.1 mm
- Max. DC resistance of the conductor at 20°C: 0.0801 Ohm/km
- Maximum Pull Tension of Conductor: 5 kN
- Maximum Pulling Tension: 3.49 kN
- Minimum Bend Radius - During Installation (under Tension): 350 mm
- Minimum Bend Radius - Installed: 230 mm
FR SDI XHF 1X25 FCu HFS RD 110 WS52W
Nexans ref. PFLX03AA001JBNA - Country ref. PFLX03AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 12.5 mm
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Maximum Pull Tension of Conductor: 0 kN
- Maximum Pulling Tension: 0.5 kN
- Minimum Bend Radius - During Installation (under Tension): 110 mm
- Minimum Bend Radius - Installed: 75 mm
FR SDI XHF 1X300 FCu HFS RD 110 WS52W
Nexans ref. PFLE91AA001JBNA - Country ref. PFLE91AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 31.8 mm
- Max. DC resistance of the conductor at 20°C: 0.0641 Ohm/km
- Maximum Pull Tension of Conductor: 6 kN
- Maximum Pulling Tension: 3.82 kN
- Minimum Bend Radius - During Installation (under Tension): 380 mm
- Minimum Bend Radius - Installed: 250 mm
FR SDI XHF 1X35 FCu HFS RD 110 WS52W
Nexans ref. PFLX04AA001JBNA - Country ref. PFLX04AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 13.7 mm
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 0.7 kN
- Minimum Bend Radius - During Installation (under Tension): 120 mm
- Minimum Bend Radius - Installed: 82 mm
FR SDI XHF 1X400 FCu HFS RD 110 WS52W
Nexans ref. PFLE92AA001JBNA - Country ref. PFLE92AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 35.9 mm
- Max. DC resistance of the conductor at 20°C: 0.0486 Ohm/km
- Maximum Pull Tension of Conductor: 8 kN
- Maximum Pulling Tension: 4.31 kN
- Minimum Bend Radius - During Installation (under Tension): 430 mm
- Minimum Bend Radius - Installed: 290 mm
FR SDI XHF 1X50 FCu HFS RD 110 WS52W
Nexans ref. PFLX05AA001JBNA - Country ref. PFLX05AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 15.3 mm
- Max. DC resistance of the conductor at 20°C: 0.386 Ohm/km
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 1 kN
- Minimum Bend Radius - During Installation (under Tension): 140 mm
- Minimum Bend Radius - Installed: 92 mm
FR SDI XHF 1X500 FCu HFS RD 110 WS52W
Nexans ref. PFLE93AA001JBNA - Country ref. PFLE93AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 41.5 mm
- Max. DC resistance of the conductor at 20°C: 0.0384 Ohm/km
- Maximum Pull Tension of Conductor: 10 kN
- Maximum Pulling Tension: 4.98 kN
- Minimum Bend Radius - During Installation (under Tension): 500 mm
- Minimum Bend Radius - Installed: 330 mm
FR SDI XHF 1X630 FCu HFS RD 110 WS52W
Nexans ref. PFLE94AA001JBNA - Country ref. PFLE94AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 630 mm²
- Nominal overall diameter: 45.7 mm
- Max. DC resistance of the conductor at 20°C: 0.0287 Ohm/km
- Maximum Pull Tension of Conductor: 13 kN
- Maximum Pulling Tension: 5.48 kN
- Minimum Bend Radius - During Installation (under Tension): 550 mm
- Minimum Bend Radius - Installed: 370 mm
FR SDI XHF 1X70 FCu HFS RD 110 WS52W
Nexans ref. PFLX63AA001JBNA - Country ref. PFLX63AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 17.2 mm
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Maximum Pull Tension of Conductor: 1 kN
- Maximum Pulling Tension: 1.4 kN
- Minimum Bend Radius - During Installation (under Tension): 150 mm
- Minimum Bend Radius - Installed: 100 mm
FR SDI XHF 1X95 FCu HFS RD 110 WS52W
Nexans ref. PFLX64AA001JBNA - Country ref. PFLX64AA001JBNA
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 19.3 mm
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Maximum Pull Tension of Conductor: 2 kN
- Maximum Pulling Tension: 1.9 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 120 mm
Description
Description

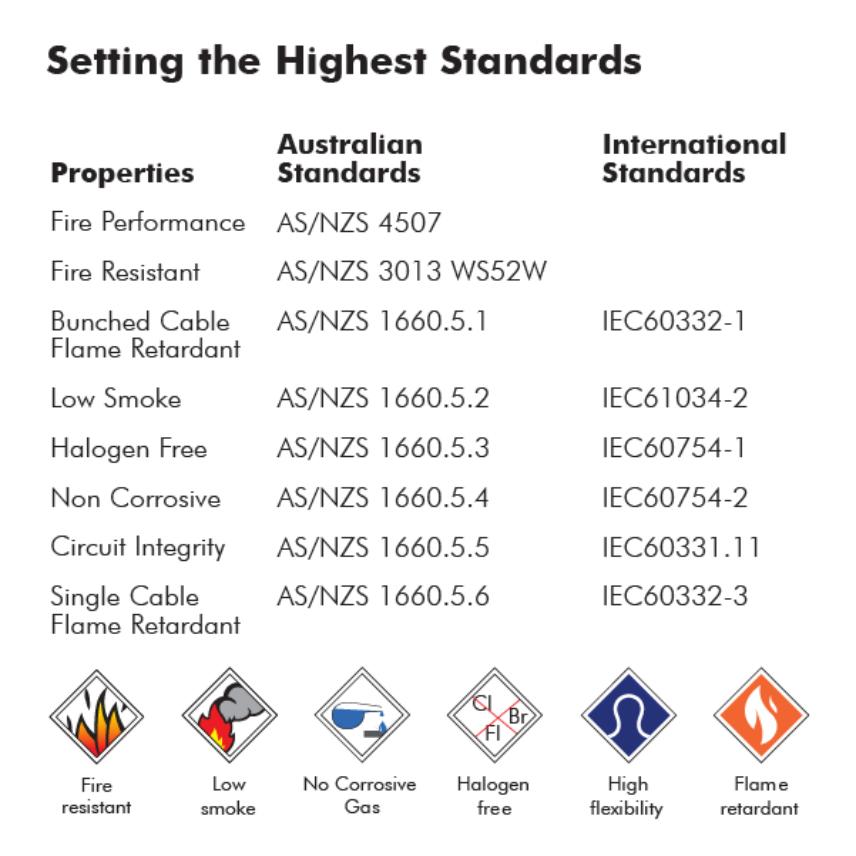

Standards
-
ProductAS/NZS 5000.1
-
InstallationAS/NZS 3013
-
TestAS/NZS 4507; IEC 60332-3 Cat.A

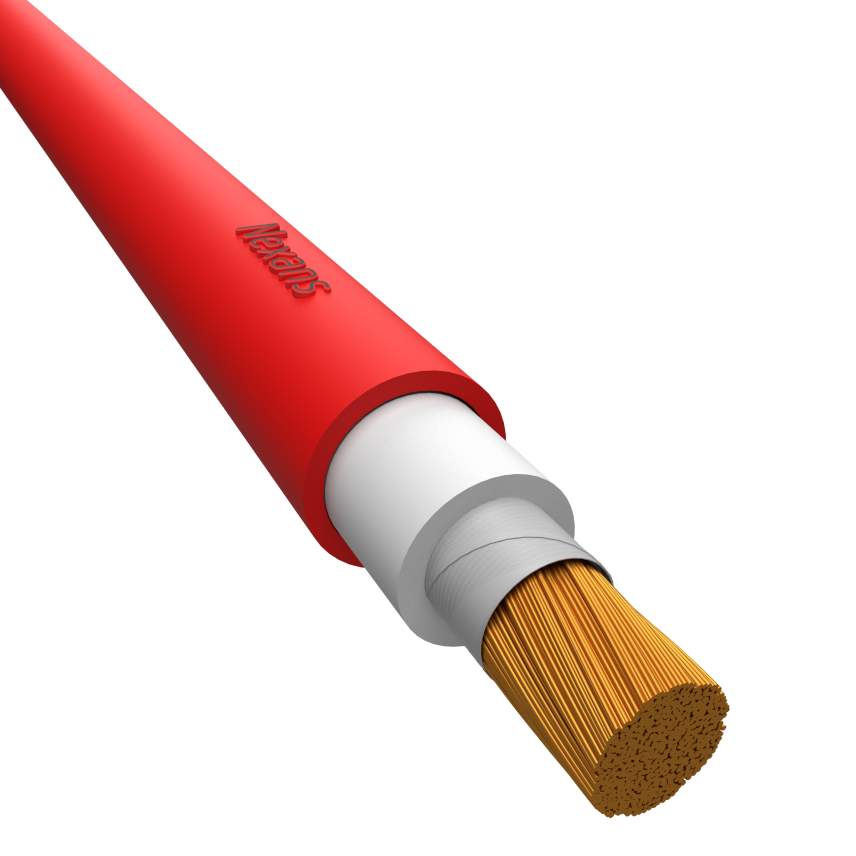

Construction
Stranded Flexible (Class 5) Plain Annealed Copper Conductor, Mica Taped,
X-HF-110 Insulated, HFS-110-TP Sheathed to AS/NZS 5000.1, 110°C, WS52W Fire Rated to AS/NZS 3013.
Nexans Fire Resistant (FR) Single Core cables are a range of Fire Rated single core products for use in mains and sub-mains applications.
Rated to 0.6/1kV, 110°C, this Low Fire Hazard (LSZH/LS0H) range of Fire Resistant cables will maintain circuit integrity and life-saving essential services in the event of fire. The Nexans FR Single Core range is readily available in sizes from 10mm² to 630mm².
Features
- Flexible stranded copper conductor
- Halogen free, low smoke and low corrosive/acid emissions, & flame retardant materials
- 110ºC rated insulation and sheath
- WS52W Rated to AS/NZS 3013
- Cat A bunched flame propagation to IEC 60332-3
- RHE-3 to AS/NZS 4507
- Meets physical property requirements of 125°C XLPO insulation to UL 1581
Benefits and applications
- Flexibility for fast, easy installation
- Contributes to the green star rating of your project
- Safer evacuation and better protection for essential building systems
The Nexans FR product range is suitable for Green Star Buildings as they do not contain any PVC.
Applications
- Fire resistant Power Circuit
- Consumer mains and Subs Mains
- Lift sub mains
- Power Cable to fire pumps and essential circuits
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
Red
Conductor flexibility
Class 5
Conductor material
Copper
Insulation
X-HF-110
Outer sheath
HFS-110-TP
Type of conductor
Stranded flexible
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
110 °C
Resources
Resources
Alsecure Plus single core - Current carrying capacity table single phase (in Amps)
Flexible Copper Conductor
Insulation X-HF-110
Maximum Conductor Temperature 110⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 26.0 | 26.0 | 21.0 | 21.0 | 16.0 | 10.0 | 33.0 | 24.0 | 27.0 |
| 1.5 | 32.0 | 32.0 | 26.0 | 25.0 | 20.0 | 13.0 | 40.0 | 30.0 | 34.0 |
| 2.5 | 43.0 | 42.0 | 34.0 | 33.0 | 27.0 | 17.0 | 53.0 | 39.0 | 44.0 |
| 4.0 | 57.0 | 56.0 | 45.0 | 45.0 | 36.0 | 23.0 | 69.0 | 51.0 | 57.0 |
| 6.0 | 73.0 | 70.0 | 57.0 | 56.0 | 45.0 | 29.0 | 86.0 | 64.0 | 71.0 |
| 10.0 | 102.0 | 98.0 | 80.0 | 77.0 | 61.0 | 40.0 | 117.0 | 86.0 | 96.0 |
| 16.0 | 135.0 | 129.0 | 105.0 | 102.0 | 82.0 | 53.0 | 151.0 | 112.0 | 125.0 |
| 25.0 | 178.0 | 170.0 | 139.0 | 133.0 | 106.0 | 70.0 | 192.0 | 143.0 | 158.0 |
| 35.0 | 221.0 | 210.0 | 172.0 | 167.0 | 133.0 | 86.0 | 232.0 | 176.0 | 195.0 |
| 50.0 | 279.0 | 263.0 | 218.0 | 207.0 | 165.0 | 0.0 | 284.0 | 215.0 | 237.0 |
| 70.0 | 351.0 | 329.0 | 273.0 | 263.0 | 210.0 | 0.0 | 345.0 | 266.0 | 287.0 |
| 95.0 | 422.0 | 395.0 | 329.0 | 312.0 | 250.0 | 0.0 | 403.0 | 312.0 | 341.0 |
| 120.0 | 500.0 | 466.0 | 390.0 | 364.0 | 291.0 | 0.0 | 464.0 | 359.0 | 392.0 |
| 150.0 | 577.0 | 536.0 | 450.0 | 426.0 | 341.0 | 0.0 | 524.0 | 414.0 | 451.0 |
| 185.0 | 660.0 | 611.0 | 516.0 | 481.0 | 385.0 | 0.0 | 585.0 | 464.0 | 503.0 |
| 240.0 | 794.0 | 732.0 | 621.0 | 583.0 | 467.0 | 0.0 | 682.0 | 548.0 | 599.0 |
| 300.0 | 916.0 | 841.0 | 716.0 | 0.0 | 0.0 | 0.0 | 769.0 | 631.0 | 675.0 |
| 400.0 | 1105.0 | 1006.0 | 860.0 | 0.0 | 0.0 | 0.0 | 893.0 | 734.0 | 784.0 |
| 500.0 | 1290.0 | 1164.0 | 999.0 | 0.0 | 0.0 | 0.0 | 1009.0 | 855.0 | 909.0 |
| 630.0 | 1529.0 | 1359.0 | 1168.0 | 0.0 | 0.0 | 0.0 | 1154.0 | 977.0 | 1046.0 |
|
Unenclosed spaced |
|
Unenclosed spaced from surface |
|
Unenclosed touching |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground Wiring Enclosure |
|
Individual wiring enclosure |
Alsecure Plus single core - Current carrying capacity table three phase (in Amps)
Flexible Copper Conductor
Insulation X-HF-110
Maximum Conductor Temperature 110⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 25.0 | 22.0 | 21.0 | 18.0 | 15.0 | 10.0 | 28.0 | 21.0 | 25.0 |
| 1.5 | 31.0 | 27.0 | 26.0 | 23.0 | 19.0 | 13.0 | 35.0 | 26.0 | 31.0 |
| 2.5 | 42.0 | 36.0 | 34.0 | 31.0 | 24.0 | 17.0 | 46.0 | 34.0 | 40.0 |
| 4.0 | 55.0 | 48.0 | 45.0 | 40.0 | 32.0 | 23.0 | 59.0 | 44.0 | 52.0 |
| 6.0 | 70.0 | 61.0 | 57.0 | 50.0 | 40.0 | 29.0 | 74.0 | 55.0 | 65.0 |
| 10.0 | 99.0 | 85.0 | 80.0 | 70.0 | 56.0 | 40.0 | 99.0 | 76.0 | 87.0 |
| 16.0 | 130.0 | 112.0 | 105.0 | 91.0 | 73.0 | 53.0 | 127.0 | 97.0 | 113.0 |
| 25.0 | 173.0 | 149.0 | 139.0 | 121.0 | 97.0 | 70.0 | 162.0 | 125.0 | 143.0 |
| 35.0 | 214.0 | 184.0 | 172.0 | 148.0 | 118.0 | 86.0 | 196.0 | 151.0 | 176.0 |
| 50.0 | 270.0 | 233.0 | 217.0 | 190.0 | 152.0 | 0.0 | 238.0 | 188.0 | 213.0 |
| 70.0 | 340.0 | 292.0 | 273.0 | 234.0 | 187.0 | 0.0 | 290.0 | 229.0 | 257.0 |
| 95.0 | 410.0 | 353.0 | 329.0 | 277.0 | 221.0 | 0.0 | 338.0 | 268.0 | 306.0 |
| 120.0 | 487.0 | 418.0 | 390.0 | 331.0 | 265.0 | 0.0 | 388.0 | 316.0 | 350.0 |
| 150.0 | 562.0 | 482.0 | 450.0 | 378.0 | 302.0 | 0.0 | 438.0 | 357.0 | 403.0 |
| 185.0 | 644.0 | 553.0 | 516.0 | 438.0 | 350.0 | 0.0 | 489.0 | 404.0 | 448.0 |
| 240.0 | 775.0 | 665.0 | 620.0 | 538.0 | 430.0 | 0.0 | 569.0 | 481.0 | 534.0 |
| 300.0 | 895.0 | 766.0 | 714.0 | 612.0 | 489.0 | 0.0 | 641.0 | 542.0 | 600.0 |
| 400.0 | 1079.0 | 918.0 | 855.0 | 757.0 | 606.0 | 0.0 | 742.0 | 648.0 | 693.0 |
| 500.0 | 1260.0 | 1064.0 | 990.0 | 864.0 | 691.0 | 0.0 | 835.0 | 729.0 | 803.0 |
| 630.0 | 1493.0 | 1240.0 | 1154.0 | 993.0 | 794.0 | 0.0 | 950.0 | 828.0 | 918.0 |
|
Unenclosed spaced |
|
Unenclosed spaced from surface |
|
Unenclosed touching |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Buried direct |
|
Underground Wiring Enclosure |
|
Individual wiring enclosure |
Selling & delivery Information
Nexans Fire Safety Offer Fire Resistant Cables PVC-free Red List Free and Declare Labelled
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
