Optical fibre - Nylon underground
Optical fibre - Nylon underground

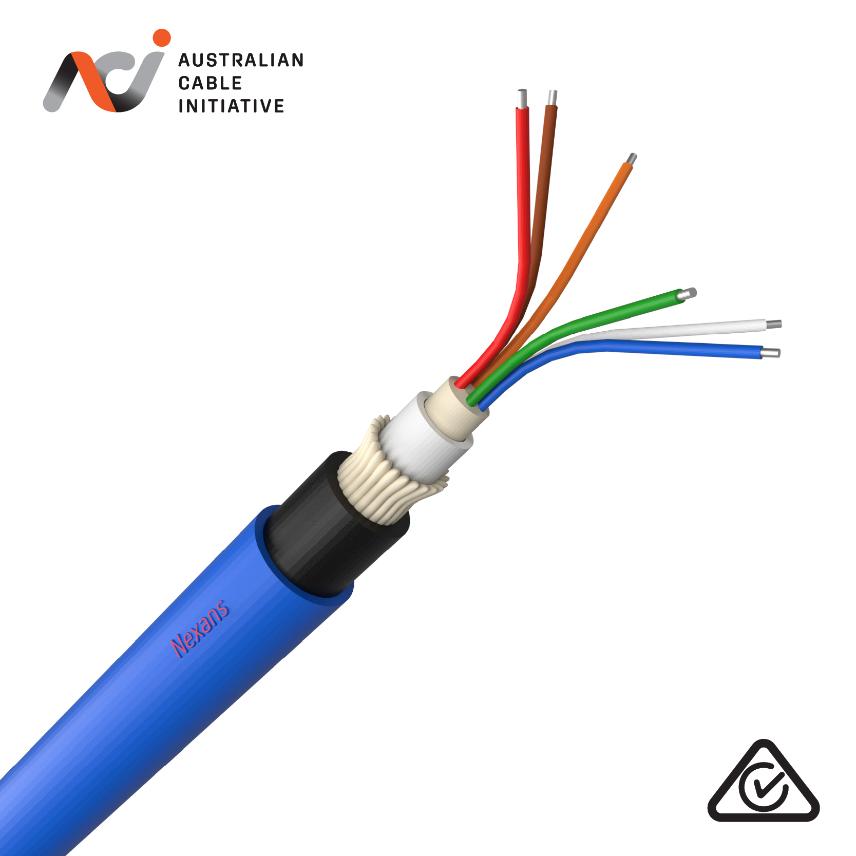

Optical fibres contained in a jelly filled mono/loose tube, aramid yarn reinforced, PE sheathed with Nylon oversheath.
Read more10/125µ SM 12 fibre
Nexans ref. FIB12SMJN - Country ref. FIB12SMJN
- Packaging: Cut to length (m)
- Fiber optic type: OS1
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 12
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
10/125µ SM 24 fibre
Nexans ref. FIB24SMJN - Country ref. FIB24SMJN
- Packaging: Cut to length (m)
- Fiber optic type: OS1
- Nominal overall diameter: 11.0 mm
- Number of optical fibres: 24
- Maximum Pulling Tension: 2.3 kN
- Minimum Bend Radius - During Installation (under Tension): 220 mm
- Minimum Bend Radius - Installed: 110 mm
10/125µ SM 6 fibre
Nexans ref. FIB06SMJN - Country ref. FIB06SMJN
- Packaging: Cut to length (m)
- Fiber optic type: OS1
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 6
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
50/125µ MM 12 fibre
Nexans ref. FIB120M3JN
- Fiber optic type: OM3 50/125
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 12
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
50/125µ MM 6 fibre
Nexans ref. FIB060M3JN
- Fiber optic type: OM3 50/125
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 6
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
62.5/125µ MM 12 fibre
Nexans ref. FIB12MMJN - Country ref. FIB12MMJN
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 12
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
62.5/125µ MM 6 fibre
Nexans ref. FIB06MMJN - Country ref. FIB06MMJN
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 6
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
62.5/125µ MM 8 fibre
Nexans ref. FIB08MMJN - Country ref. FIB08MMJN
- Packaging: Cut to length (m)
- Fiber optic type: OM1 62.5/125
- Nominal overall diameter: 8.5 mm
- Number of optical fibres: 8
- Maximum Pulling Tension: 1.5 kN
- Minimum Bend Radius - During Installation (under Tension): 170 mm
- Minimum Bend Radius - Installed: 85 mm
Description
Description
Designed for duct installation or direct burial, where water or termite resistance are required.
Options
Fibre counts up to 324 fibre are available upon request for loose tube cables
Corrugated Steel Tape (CST) Armouring
Composite (combination of single and multi mode)
ADSS (All Dielectric Self Supporting)
Sacrificial Sheath
Low Smoke Zero Halogen (LSZH) outer sheath
Rodent Resistance
Characteristics
Characteristics
Resources
Resources
Selling & delivery Information
Note: Minimum order quantity applies to these options.
The OS1 fibre is specified to ITU-T G652.D (low water peak).
