Bushing
Equipment bushings are moulded epoxy insulated parts for use in equipment insulated parts for use in equipment insulated with oil fluid or gas insulated, typically for transformers, switch gear, capacitors...
Close
/
Short circuit ratings
| INTERFACE TYPE |
CONTACT TYPE |
CURRENT RATING (A) |
RMS SYMM. (KA) | PEAK ASYMM. (KA) |
VOLTAGE UM (KV) |
||
| 1 SEC. | 2 SEC. | 3 SEC. | |||||
|

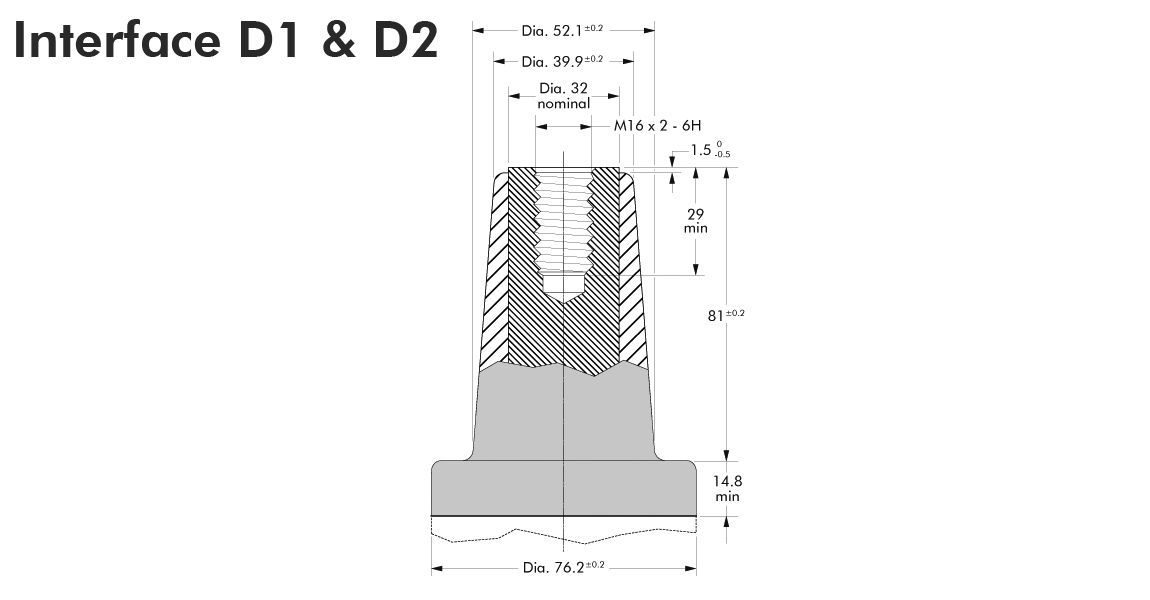

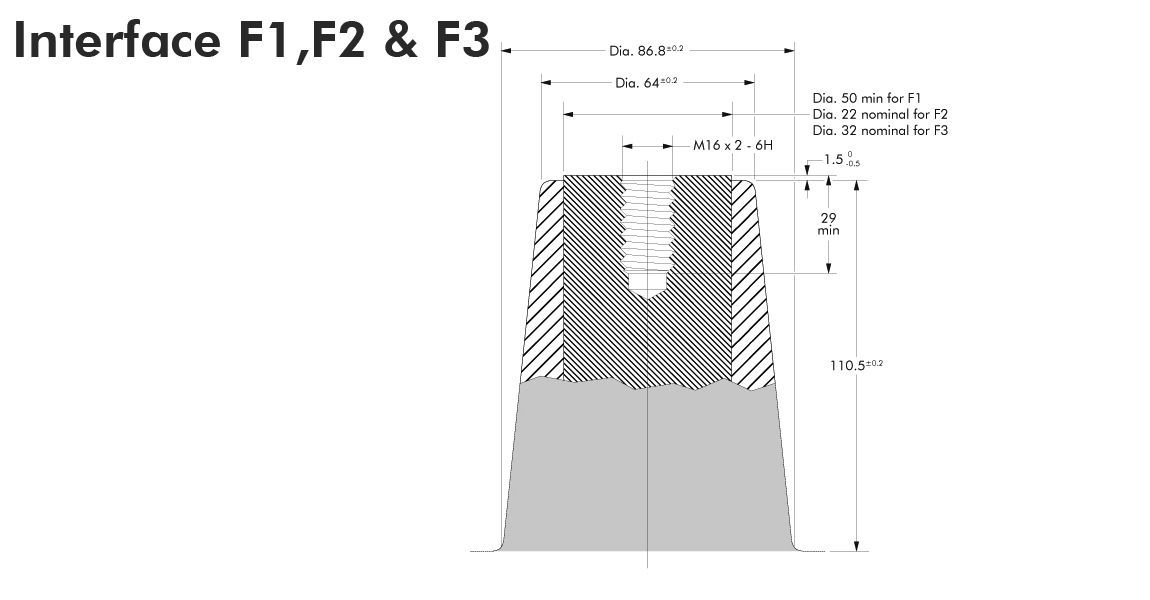

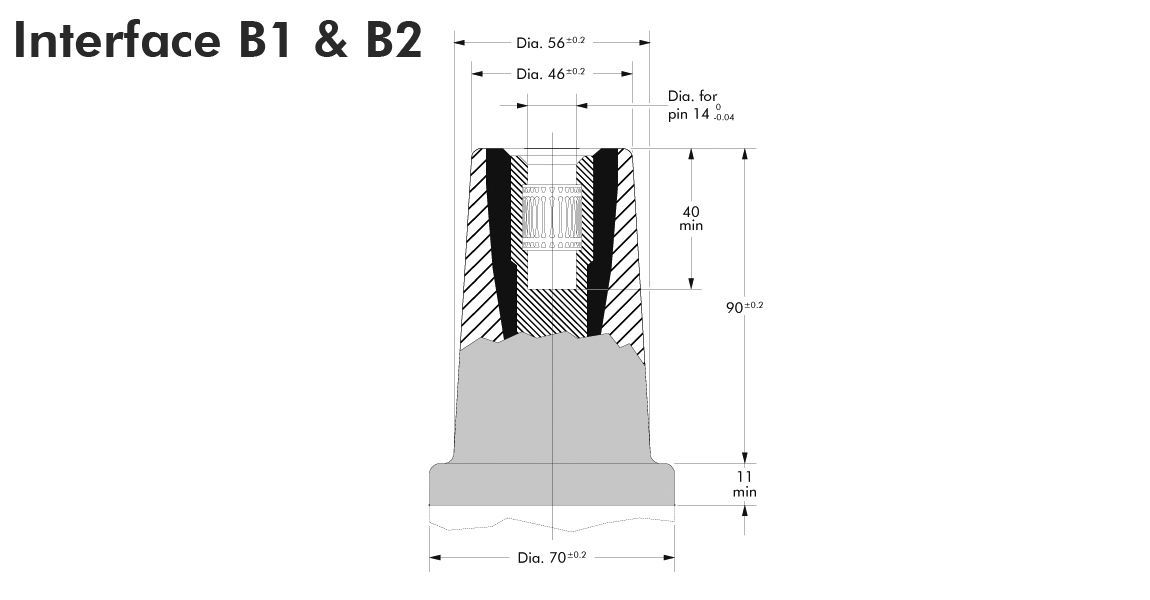

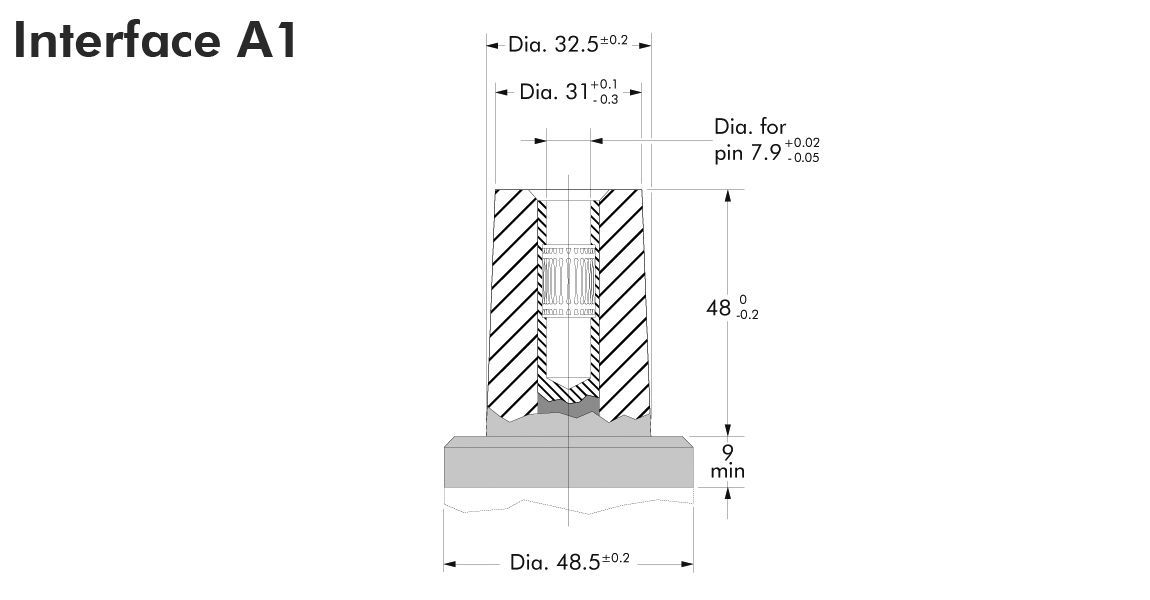

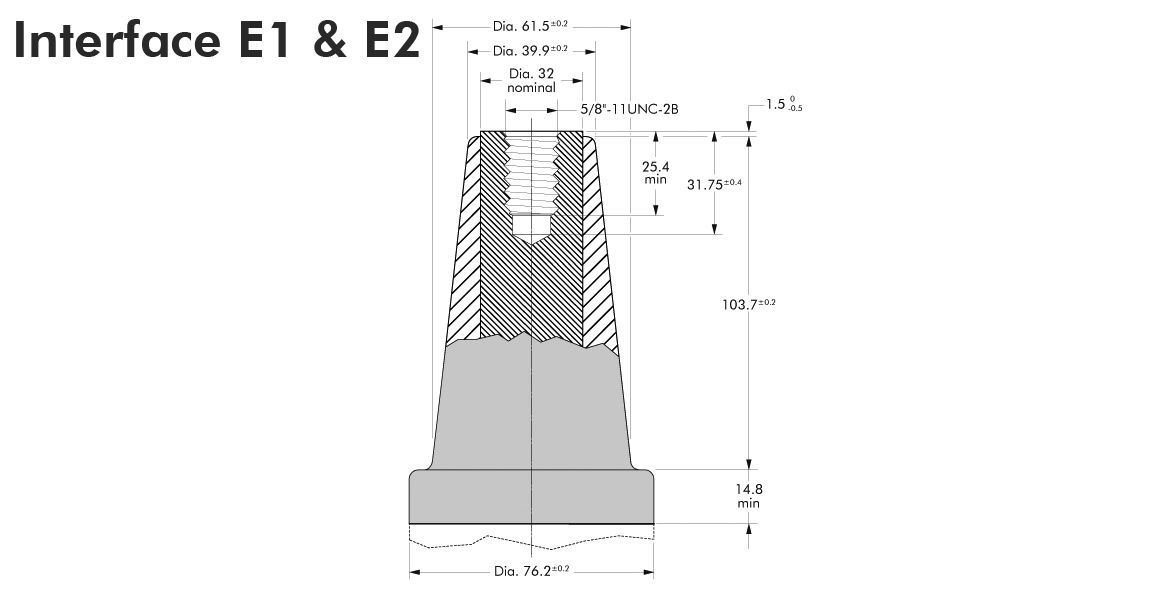

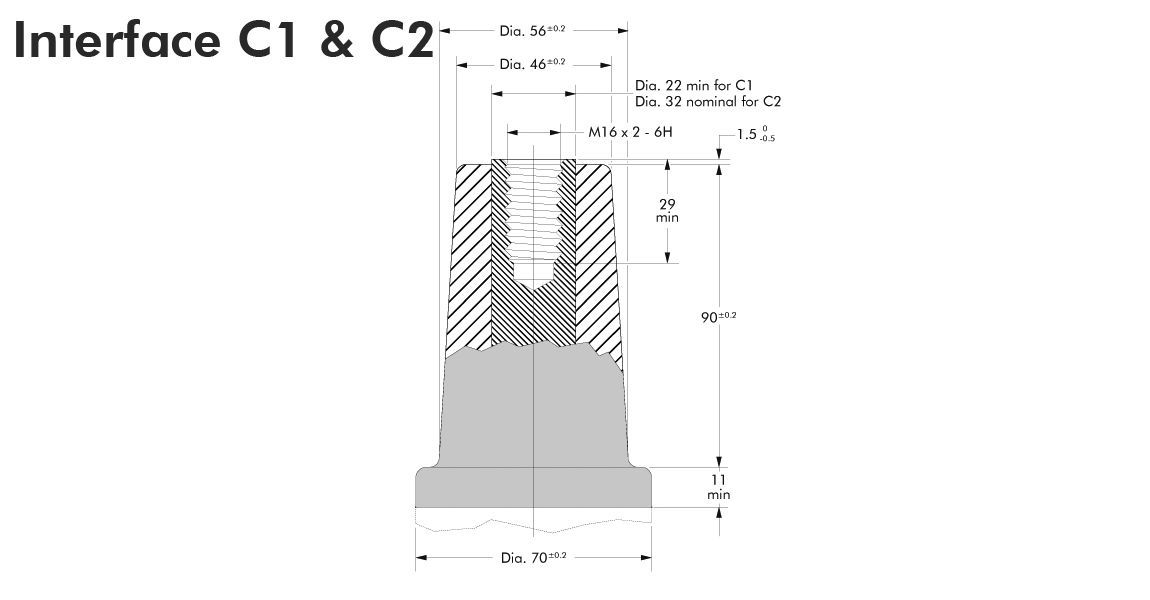

A1 B1 B2 C1 C2 D1 D2 E1 E2 F1 F2 F3 |
PIN AND SOCKET PIN AND SOCKET PIN AND SOCKET BOLTED BOLTED BOLTED BOLTED BOLTED BOLTED BOLTED BOLTED BOLTED |
250 250 400 630 1250 800 1250 800 1250 2500 630 1250 |
12.5 12.5 16.0 28.0 75.0 50.0 75.0 50.0 75.0 - 28.0 75.0 |
9.0 9.0 11.3 19.7 53.0 35.3 53.0 35.3 53.0 - 19.7 53.0 |
7.5 7.5 9.2 16.1 43.3 28.8 43.3 28.8 43.3 - 16.1 43.3 |
31 31 40 70 >150 125 >150 125 >150 - 70 >150 |
24 36 36 36 36 24 24 36 36 36 52 52 |
