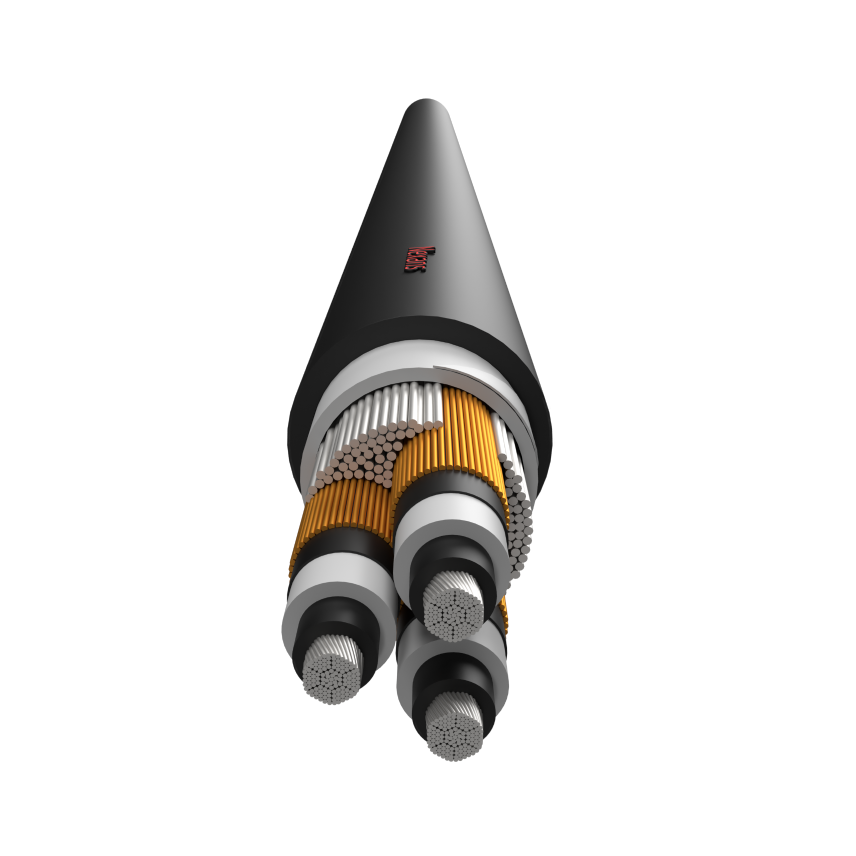

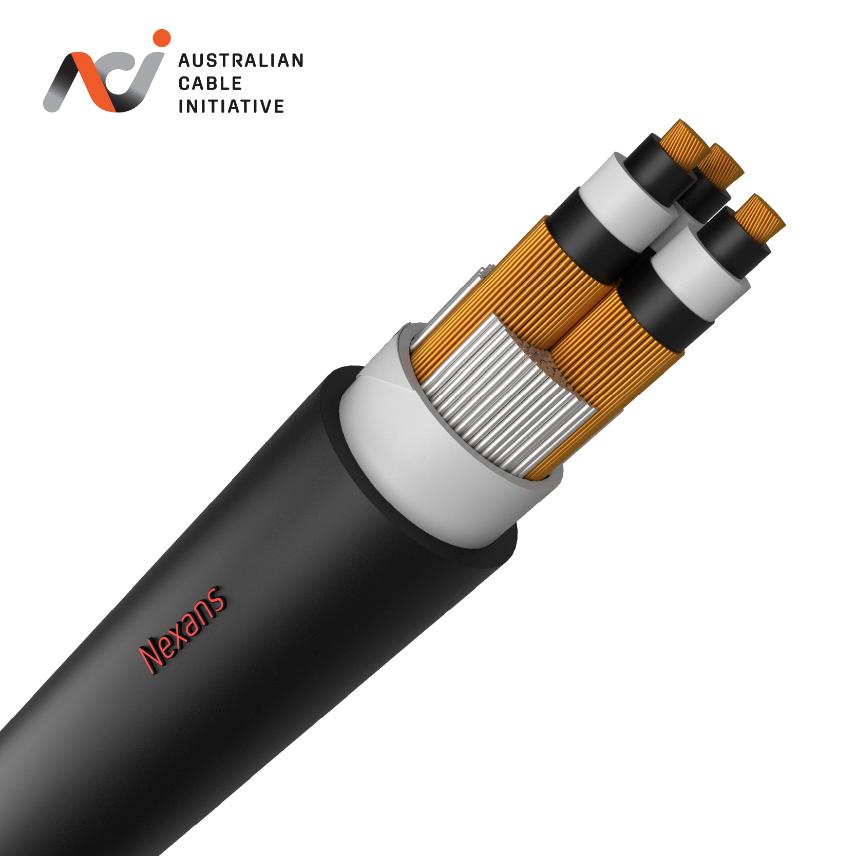

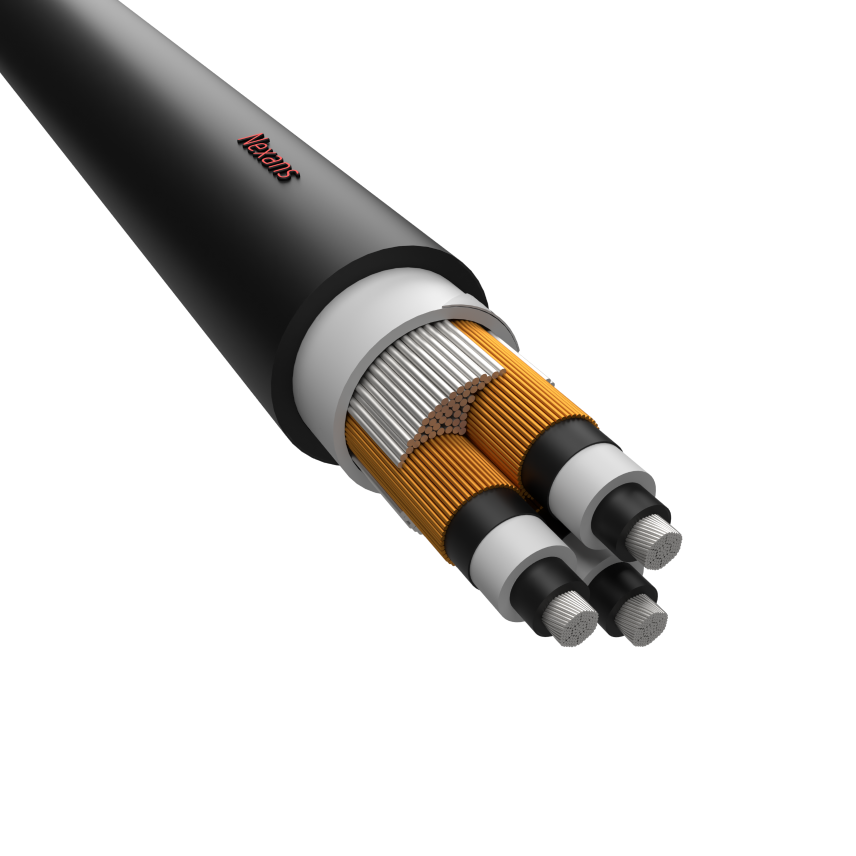

6.35/11kV Three Core Underground Residential Distribution
6.35/11kV Three Core Underground Residential Distribution
6.35/11kV Three Core, Individually Screened PVC or PVC/HDPE Sheathed URD
Read more3C 185mm2 Al 6.35/11kV PVC URD 10kA Black
Nexans ref. XJNA25AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 65.0 mm
3C 185mm2 Al 6.35/11kV PVC URD 3kA Black
Nexans ref. XJMA25AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 65.0 mm
3C 240mm2 Al 6.35/11kV PVC URD 10kA Black
Nexans ref. XJNA26AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 70.4 mm
3C 240mm2 Al 6.35/11kV PVC URD 3kA Black
Nexans ref. XJMA26AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 70.4 mm
3C 300mm2 Al 6.35/11kV PVC URD 3kA Black
Nexans ref. XJMA27AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 75.6 mm
3C 35mm2 Al 6.35/11kV PVC URD 10kA Black
Nexans ref. XJNA18AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 44.7 mm
3C 95mm2 Al 6.35/11kV PVC URD 10kA Black
Nexans ref. XJNA22AA003CXAA
- Conductor material: Aluminum
- Outer sheath: PVC/HDPE
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 55.1 mm
3C Cu 6.35/11kV URD PVC Black to Vic Specification
Nexans ref. XJHP25SUT03CXAA
- Conductor material: Copper
- Outer sheath: PVC
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 66.0 mm
Description
Description
Standards
-
InternationalIEC 60228; IEC 60502-2
-
NationalAS/NZS 1125; AS/NZS 1429.1
Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, PVC sheathed.
XJM - 3kA Screen Fault Level
XJN - 10kA or Heavy Duty Screened
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor shape
Circular
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
6.35 / 11 kV
Resources
Resources
Current carrying capacity table (in Amps) - 6.35/11kV Three Core
Current carrying capacity table (in Amps) - 6.35/11kV Three Core
Conductor cross-section | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
16.0 | 104.0 | 0.0 | 110.0 | 0.0 | 78.0 | 0.0 | 113.0 | 0.0 | 89.0 | 0.0 |
25.0 | 134.0 | 0.0 | 143.0 | 0.0 | 100.0 | 0.0 | 145.0 | 0.0 | 114.0 | 0.0 |
35.0 | 162.0 | 126.0 | 173.0 | 135.0 | 120.0 | 93.0 | 173.0 | 134.0 | 136.0 | 106.0 |
50.0 | 194.0 | 151.0 | 208.0 | 161.0 | 145.0 | 112.0 | 204.0 | 158.0 | 162.0 | 126.0 |
70.0 | 241.0 | 187.0 | 259.0 | 201.0 | 178.0 | 138.0 | 249.0 | 193.0 | 199.0 | 154.0 |
95.0 | 295.0 | 228.0 | 317.0 | 245.0 | 220.0 | 171.0 | 299.0 | 231.0 | 242.0 | 188.0 |
120.0 | 340.0 | 263.0 | 367.0 | 283.0 | 252.0 | 195.0 | 340.0 | 263.0 | 276.0 | 214.0 |
150.0 | 385.0 | 298.0 | 415.0 | 321.0 | 284.0 | 220.0 | 380.0 | 295.0 | 310.0 | 240.0 |
185.0 | 440.0 | 341.0 | 476.0 | 368.0 | 322.0 | 250.0 | 429.0 | 333.0 | 350.0 | 272.0 |
240.0 | 519.0 | 403.0 | 563.0 | 436.0 | 389.0 | 292.0 | 497.0 | 387.0 | 416.0 | 316.0 |
300.0 | 594.0 | 462.0 | 645.0 | 501.0 | 442.0 | 344.0 | 560.0 | 437.0 | 470.0 | 366.0 |
400.0 | 685.0 | 538.0 | 746.0 | 585.0 | 505.0 | 397.0 | 635.0 | 500.0 | 534.0 | 420.0 |
500.0 | 779.0 | 622.0 | 850.0 | 679.0 | 569.0 | 454.0 | 710.0 | 567.0 | 597.0 | 477.0 |
In air touching (3 core) |
In air spaced (3 core) |
In air enclosed (3 core) |
Underground direct buried (3 core) |
Underground ducts (3 core) |
