6.35/11kV Three Core SWA
6.35/11kV Three Core SWA

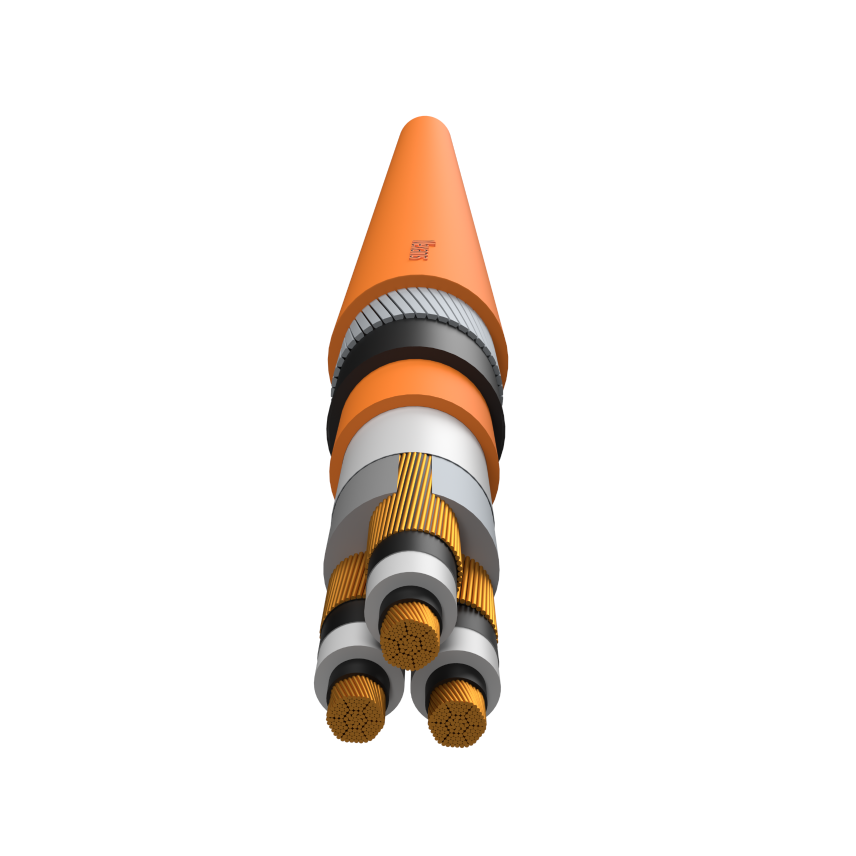

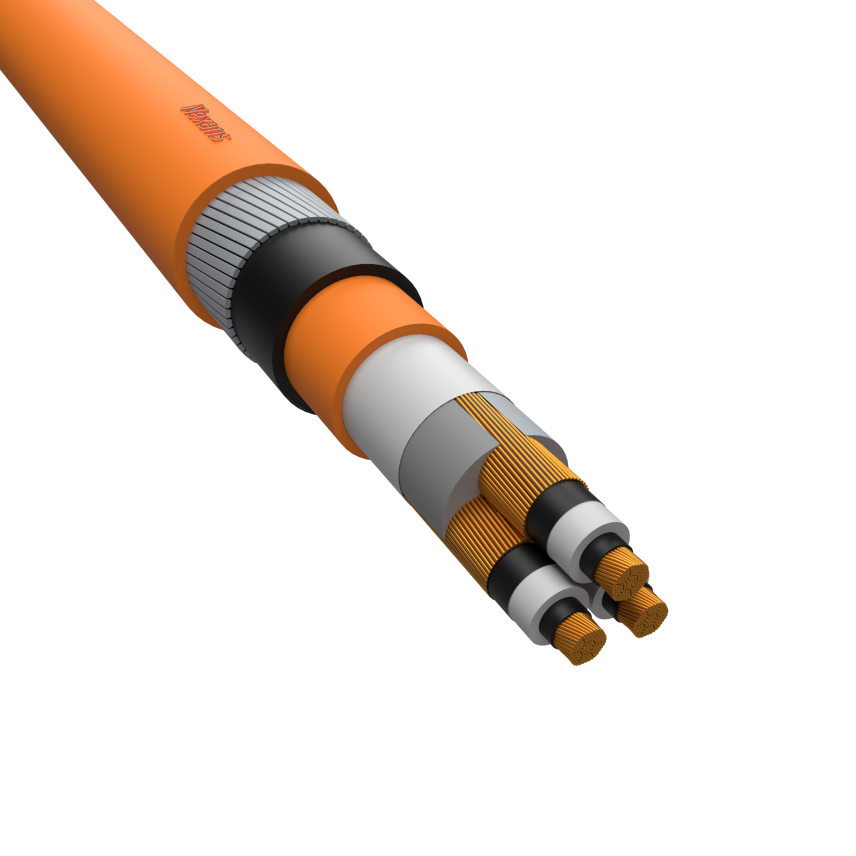

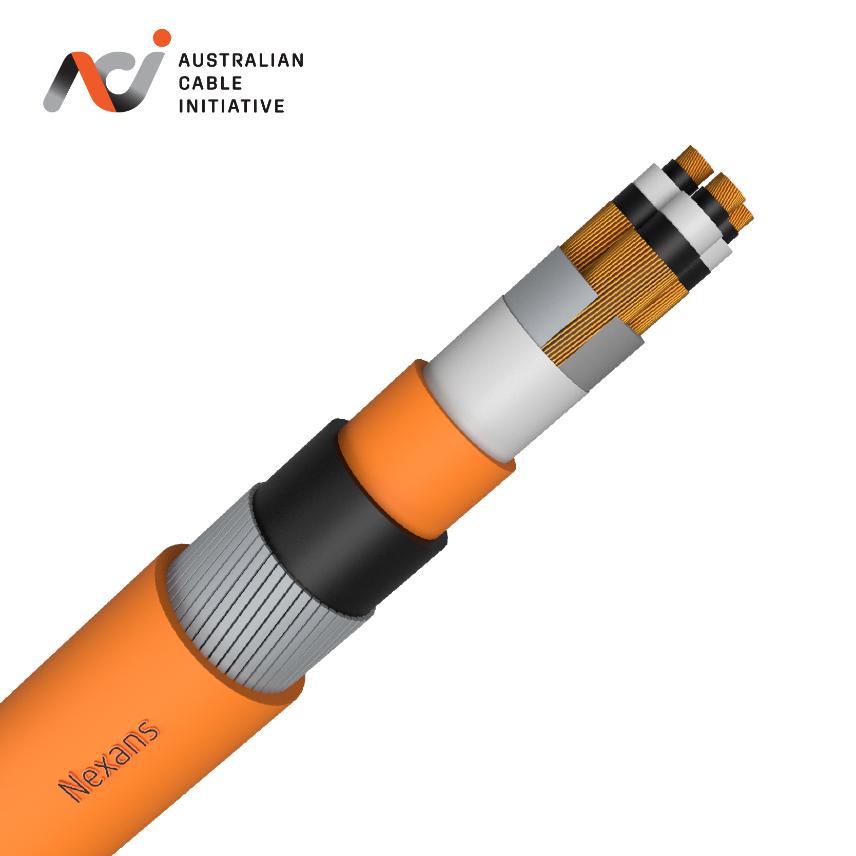

6.35/11kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level
Read more3C 120mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA23AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 67.2 mm
3C 120mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP23AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 67.9 mm
3C 150mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA24AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 70.7 mm
3C 150mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP24AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 71.2 mm
3C 16mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP15AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 47.7 mm
3C 185mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA25AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 74.1 mm
3C 185mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP25AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 75.2 mm
3C 240mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA26AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 81.0 mm
3C 240mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP26AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 82.3 mm
3C 25mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP17AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 51.4 mm
3C 300mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA27AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 86.6 mm
3C 300mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP27AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 88.0 mm
3C 35mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA18AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 53.0 mm
3C 35mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP18AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 53.0 mm
3C 400mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA28AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 94.1 mm
3C 400mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP28AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 95.5 mm
3C 500mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA30AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 102.4 mm
3C 500mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP30AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 102.4 mm
3C 50mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA19AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 55.8 mm
3C 50mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP19AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 55.7 mm
3C 70mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA20AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 59.7 mm
3C 70mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP20AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 59.6 mm
3C 95mm2 Al 6.35/11kV SWA Red
Nexans ref. XJJA22AA003JBAA
- Packaging: Drum (m)
- Conductor material: Aluminum
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 63.8 mm
3C 95mm2 Cu 6.35/11kV SWA Red
Nexans ref. XJJP22AA003JBAA
- Packaging: Drum (m)
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 64.1 mm
Description
Description
Standards
-
InternationalIEC 60228; IEC 60502-2
-
NationalAS/NZS 1125; AS/NZS 1429.1
Stranded compacted conductor, triple extruded conductor screen, insulation and insulation screen, copper wire screened, laid-up, PVC bedded, steel wire armoured, PVC sheathed.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
Current carrying capacity table (in Amps) - 6.35/11kV Three Core SWA
Current carrying capacity table (in Amps) - 6.35/11kV Three Core SWA
Conductor cross-section | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
16.0 | 105.0 | 0.0 | 111.0 | 0.0 | 79.0 | 0.0 | 112.0 | 0.0 | 90.0 | 0.0 |
25.0 | 136.0 | 0.0 | 145.0 | 0.0 | 104.0 | 0.0 | 143.0 | 0.0 | 116.0 | 0.0 |
35.0 | 164.0 | 127.0 | 174.0 | 136.0 | 124.0 | 96.0 | 171.0 | 133.0 | 138.0 | 107.0 |
50.0 | 195.0 | 152.0 | 208.0 | 162.0 | 150.0 | 117.0 | 201.0 | 157.0 | 165.0 | 129.0 |
70.0 | 241.0 | 188.0 | 257.0 | 201.0 | 183.0 | 143.0 | 245.0 | 191.0 | 201.0 | 157.0 |
95.0 | 291.0 | 227.0 | 312.0 | 243.0 | 220.0 | 171.0 | 292.0 | 227.0 | 240.0 | 187.0 |
120.0 | 334.0 | 260.0 | 359.0 | 279.0 | 250.0 | 195.0 | 330.0 | 257.0 | 272.0 | 212.0 |
150.0 | 375.0 | 293.0 | 403.0 | 315.0 | 288.0 | 218.0 | 367.0 | 287.0 | 309.0 | 237.0 |
185.0 | 426.0 | 334.0 | 458.0 | 359.0 | 324.0 | 255.0 | 412.0 | 323.0 | 347.0 | 273.0 |
240.0 | 495.0 | 391.0 | 534.0 | 422.0 | 373.0 | 296.0 | 469.0 | 372.0 | 396.0 | 315.0 |
300.0 | 556.0 | 443.0 | 602.0 | 479.0 | 416.0 | 333.0 | 521.0 | 416.0 | 440.0 | 352.0 |
400.0 | 629.0 | 508.0 | 682.0 | 550.0 | 467.0 | 378.0 | 579.0 | 469.0 | 490.0 | 397.0 |
500.0 | 699.0 | 577.0 | 760.0 | 627.0 | 535.0 | 441.0 | 634.0 | 523.0 | 555.0 | 458.0 |
In air touching (3 core) |
In air spaced (3 core) |
In air enclosed (3 core) |
Underground Direct Buried (3 core) |
Underground ducts (3 core) |
