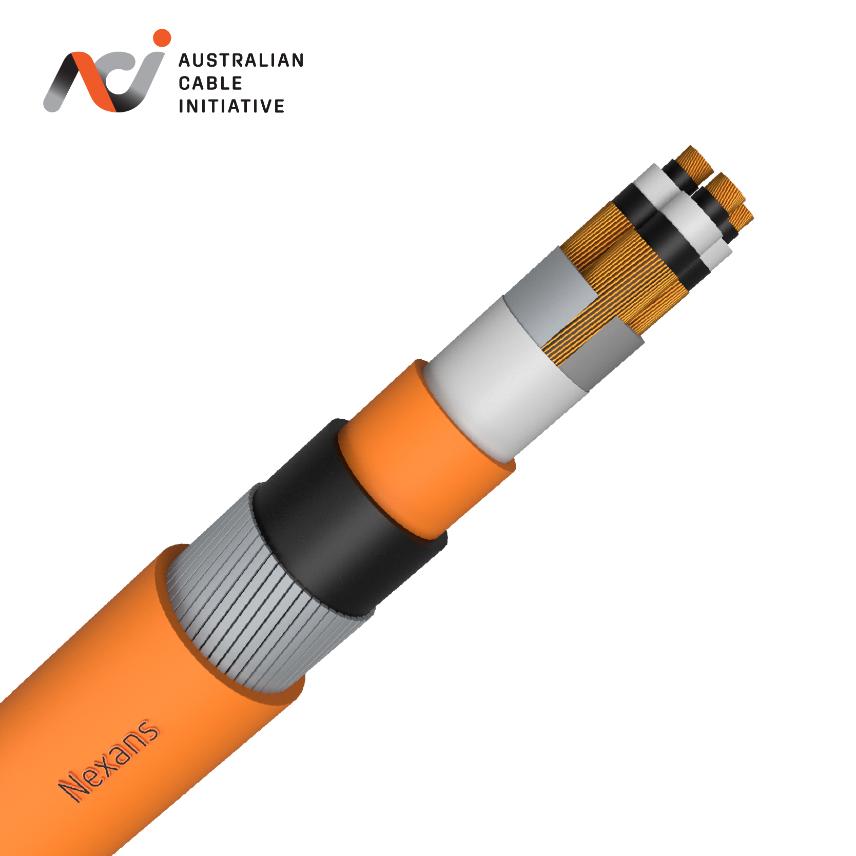

12.7/22kV Three Core SWA
12.7/22kV Three Core SWA
12.7/22kV Three Core, Individually Screened and PVC Sheathed Stranded Conductors up to 10kA fault level
Read more12.7/22kV Three Core SWA
Nexans ref. XLJA18AA003JBAA
- Conductor material: Aluminum
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 63.3 mm
12.7/22kV Three Core SWA
Nexans ref. XLJA25AA003CXAA
- Conductor material: Aluminum
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 85.9 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP18AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 63.2 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP19AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 66.0 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP19AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 66.0 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP20AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 70.1 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP20AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 70.1 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP22AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 74.4 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP22AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 74.4 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP23AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 79.6 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP23AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 79.6 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP24AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 83.1 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP25AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 87.0 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP25AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 87.0 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP26AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 92.6 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP26AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 92.6 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP27AA003JBAA
- Conductor material: Copper
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 98.8 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP27AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 98.8 mm
12.7/22kV Three Core SWA
Nexans ref. XLJP28AA003CXAA
- Conductor material: Copper
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 105.6 mm
Description
Description
Standards
-
InternationalIEC 60228; IEC 60502-2
-
NationalAS/NZS 1125; AS/NZS 1429.1

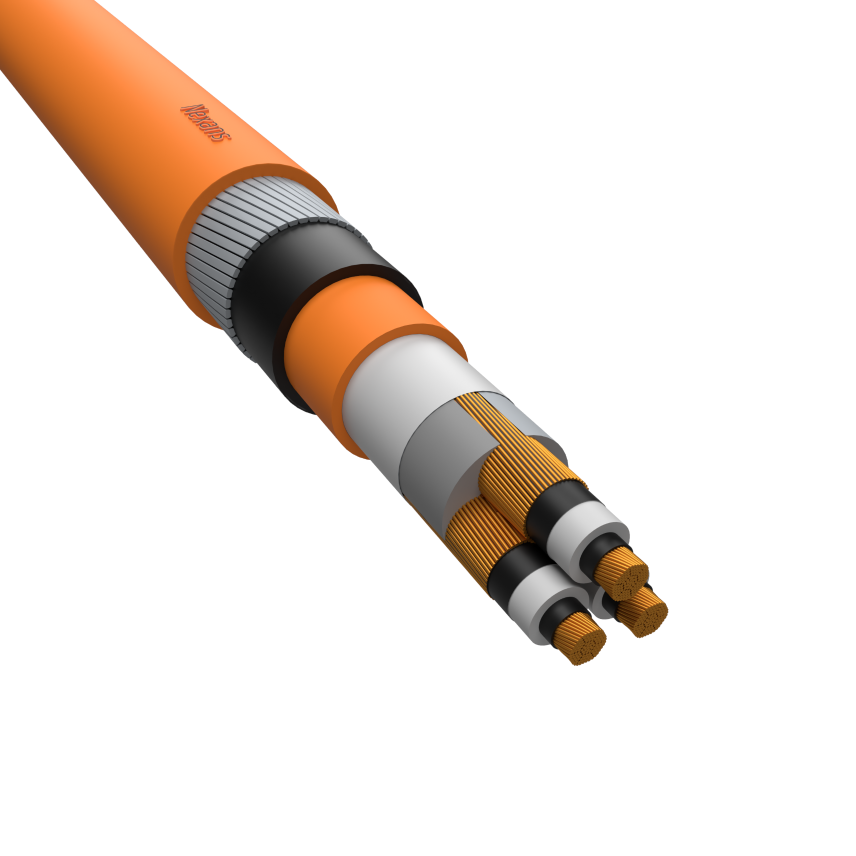

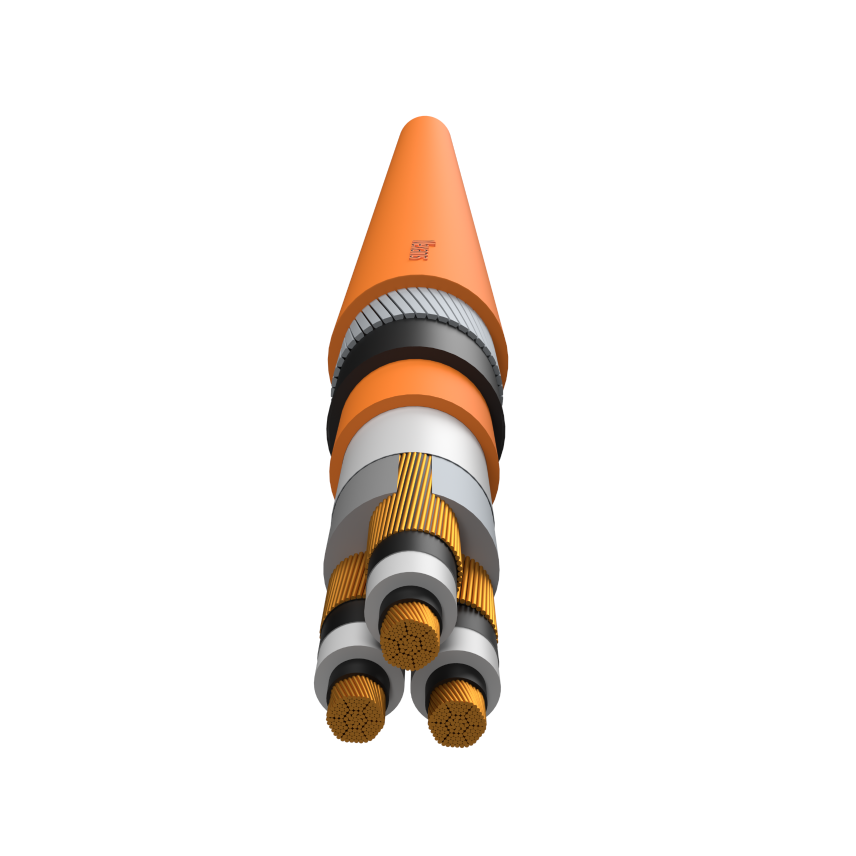

Construction
- Stranded compacted conductor
- Triple extruded conductor screen
- Insulation and insulation screen
- Copper wire screen
- Steel wire armoured
- PVC sheathed
Characteristics
Characteristics
Resources
Resources
Current carrying capacity table (in Amps) - 12.7/22kV Three Core SWA
Current carrying capacity table (in Amps) - 12.7/22kV Three Core SWA
Conductor cross-section | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
35.0 | 167.0 | 130.0 | 178.0 | 138.0 | 130.0 | 101.0 | 171.0 | 133.0 | 142.0 | 111.0 |
50.0 | 199.0 | 155.0 | 212.0 | 165.0 | 153.0 | 119.0 | 201.0 | 157.0 | 167.0 | 130.0 |
70.0 | 245.0 | 191.0 | 261.0 | 204.0 | 187.0 | 146.0 | 245.0 | 191.0 | 201.0 | 159.0 |
95.0 | 296.0 | 230.0 | 316.0 | 246.0 | 231.0 | 180.0 | 292.0 | 227.0 | 248.0 | 193.0 |
120.0 | 339.0 | 264.0 | 363.0 | 283.0 | 262.0 | 205.0 | 330.0 | 258.0 | 280.0 | 219.0 |
150.0 | 380.0 | 297.0 | 408.0 | 319.0 | 292.0 | 229.0 | 366.0 | 287.0 | 311.0 | 244.0 |
185.0 | 430.0 | 337.0 | 462.0 | 363.0 | 328.0 | 258.0 | 410.0 | 323.0 | 349.0 | 275.0 |
240.0 | 499.0 | 394.0 | 538.0 | 424.0 | 377.0 | 299.0 | 469.0 | 372.0 | 398.0 | 316.0 |
300.0 | 561.0 | 446.0 | 606.0 | 481.0 | 421.0 | 336.0 | 521.0 | 415.0 | 442.0 | 353.0 |
400.0 | 634.0 | 511.0 | 687.0 | 553.0 | 490.0 | 396.0 | 580.0 | 469.0 | 508.0 | 412.0 |
500.0 | 705.0 | 580.0 | 766.0 | 629.0 | 539.0 | 445.0 | 635.0 | 523.0 | 556.0 | 459.0 |
In air touching (3 core) |
In air spaced (3 core) |
In air enclosed (3 core) |
Underground Direct Buried (3 core) |
Underground ducts (3 core) |
