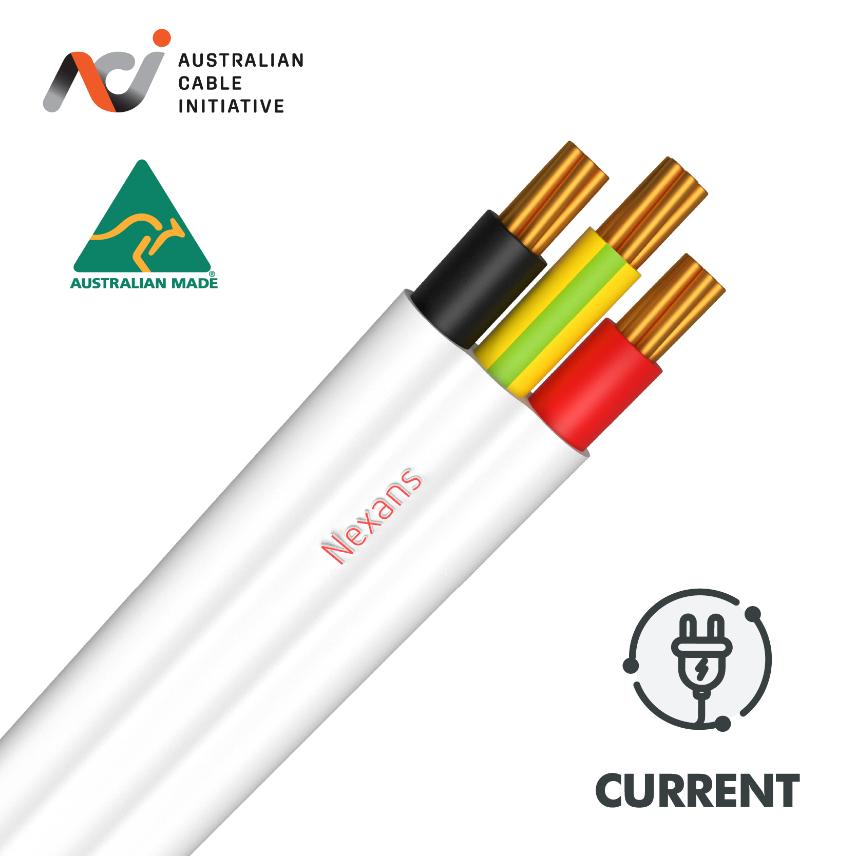

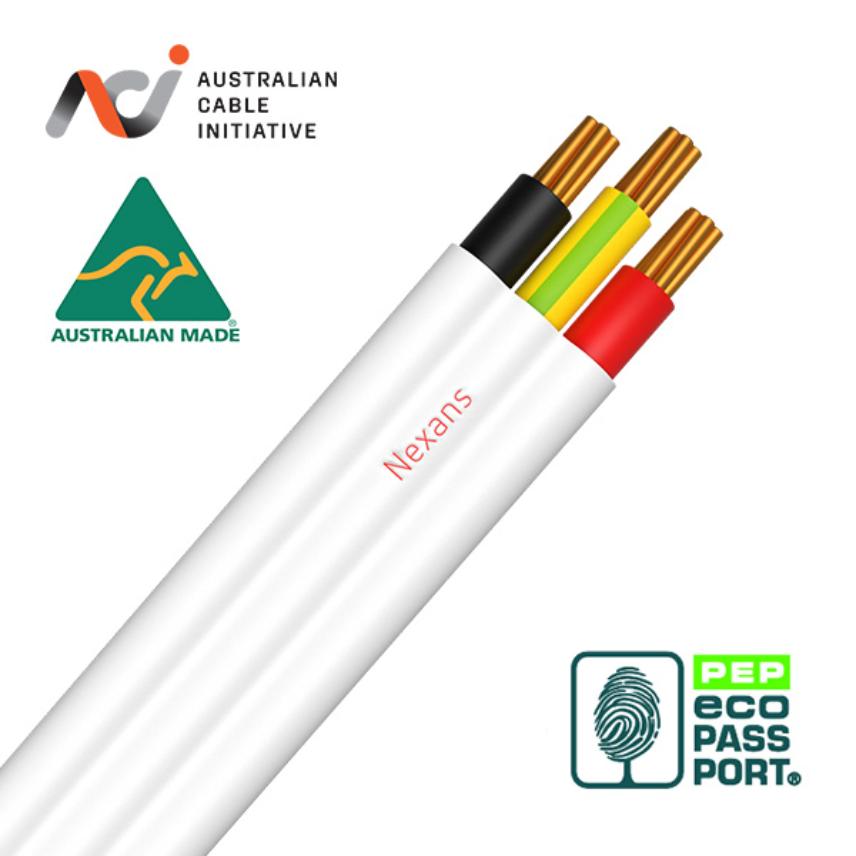

PVC Flat (TPS) 2 Core + Earth & 3 Core + Earth
PVC Flat (TPS) 2 Core + Earth & 3 Core + Earth

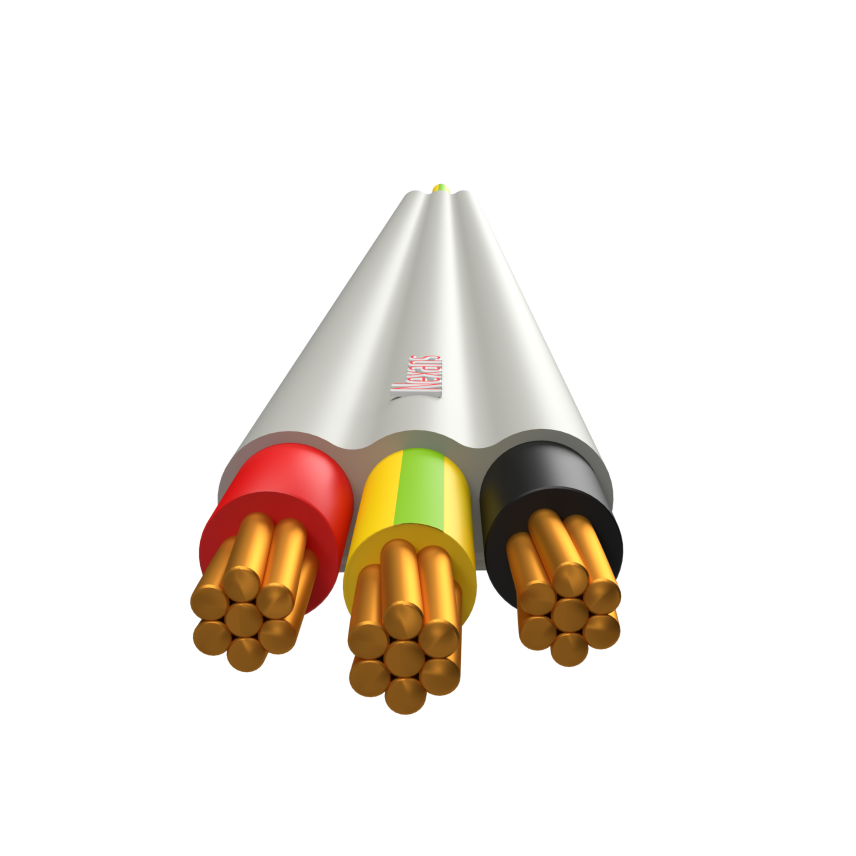

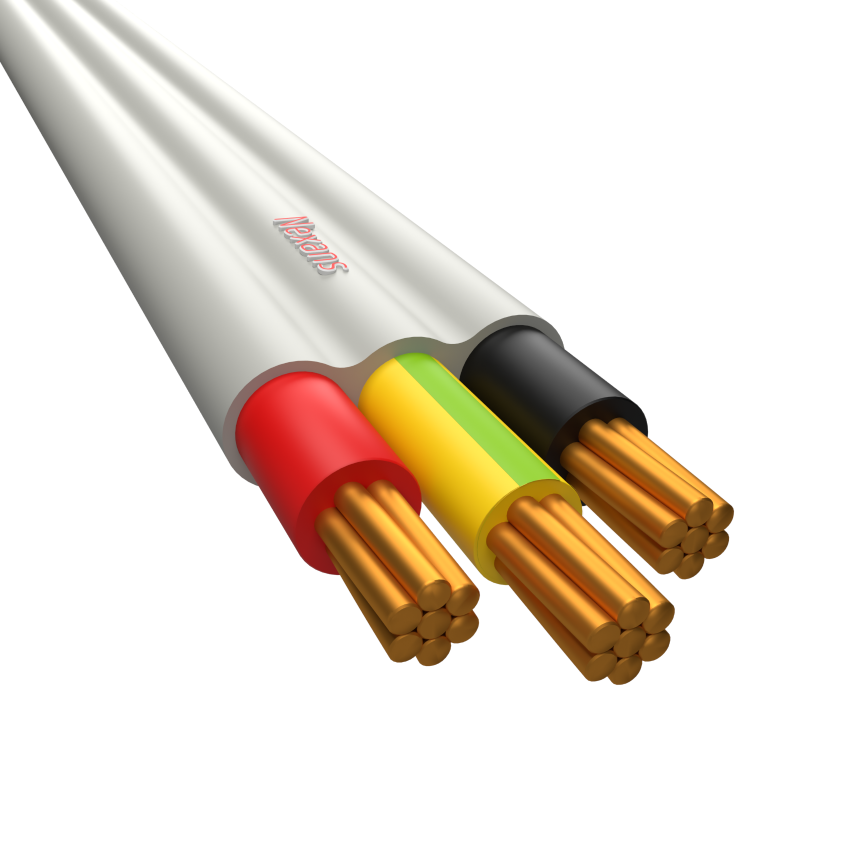

2 & 3 core+earth flat, 450/750V V-90 insulated, PVC sheathed to AS/NZS 5000.2, copper conductors, 90°C. Manufactured in accordance with PVC Best Practice Guidelines.
Read more1.5mm 2C&E Flat White 100m
Nexans ref. CNCP05A1002WVAA
- Packaging: Pallet (10000m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Number of cores: 2
1.5mm 2C&E Flat White 150m
Nexans ref. CNCP05A1502WVAA
- Packaging: Pallet (12000m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 150 m
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Number of cores: 2
1.5mm 2C&E Flat White 500m
Nexans ref. CNCP05A5002WVAA
- Packaging: Pallet (2500m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Number of cores: 2
1.5mm 3C&E Flat White 100m
Nexans ref. ENCP05A1003WVAA
- Packaging: Spool (100m)
- Colour: White / red / white / blue / green yellow
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Number of cores: 3
10mm 2C&E Flat White 100m
Nexans ref. CNCP13A1002WVAA
- Packaging: Spool (100m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Number of cores: 2
10mm 2C&E Flat White 500m
Nexans ref. CNCP13A5002WVAA
- Packaging: Spool (500m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Number of cores: 2
16mm 2C&E Flat White 100m
Nexans ref. CNCP15A1002WVAA
- Packaging: Spool (100m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 2
16mm 2C&E Flat White 500m
Nexans ref. CNCP15A5002WVAA
- Packaging: Spool (500m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Number of cores: 2
1mm 2C&E Flat White 100m
Nexans ref. CNCP02A1002WVAA
- Packaging: Pallet (10000m)
- Colour: White / Black / Red
- Conductor flexibility: Solid class 1
- Cable length: 100 m
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Number of cores: 2
1mm 2C&E Flat White 200m
Nexans ref. CNCP02A2002WVAA
- Packaging: Pallet (12800m)
- Colour: White / Black / Red
- Conductor flexibility: Solid class 1
- Cable length: 200 m
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Number of cores: 2
2.5mm 2C&E Flat Black 100m
Nexans ref. CNCP07A1002BKAA
- Packaging: Pallet (8000m)
- Colour: Black / black / red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
2.5mm 2C&E Flat Black 500m
Nexans ref. CNCP07A5002BKAA
- Packaging: Pallet (2000m)
- Colour: Black / black / red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
2.5mm 2C&E Flat White 100m
Nexans ref. CNCP07A1002WVAA
- Packaging: Pallet (8000m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
2.5mm 2C&E Flat White 150m
Nexans ref. CNCP07A1502WVAA
- Packaging: Pallet (7200m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 150 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
2.5mm 2C&E Flat White 500m
Nexans ref. CNCP07A5002WVAA
- Packaging: Pallet (2000m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
2.5mm 3C&E Flat (Red, White, Black Cores) White 100m
Nexans ref. ENCP07A5003WVEC
- Packaging: Spool (500m)
- Colour: White / black / red / white / green yellow
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 3
2.5mm 3C&E Flat White 100m
Nexans ref. ENCP07A1003WVAA
- Packaging: Spool (100m)
- Colour: White / red / white / blue / green yellow
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 3
4mm 2C&E Flat Black 100m
Nexans ref. CNCP09A1002BKAA
- Packaging: Pallet (3200m)
- Colour: Black / black / red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
4mm 2C&E Flat Black 500m
Nexans ref. CNCP09A5002BKAA
- Packaging: Pallet (2000m)
- Colour: Black / black / red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
4mm 2C&E Flat White 100m
Nexans ref. CNCP09A1002WVAA
- Packaging: Pallet (3200m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
4mm 2C&E Flat White 500m
Nexans ref. CNCP09A5002WVAA
- Packaging: Pallet (2000m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
6mm 2C&E Flat Black 500m
Nexans ref. CNCP11A5002BKAA
- Packaging: Drum (500m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
6mm 2C&E Flat White 100m
Nexans ref. CNCP11A1002WVAA
- Packaging: Pallet (3200m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 100 m
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
6mm 2C&E Flat White 500m
Nexans ref. CNCP11A5002WVAA
- Packaging: Spool (500m)
- Colour: White / Black / Red
- Conductor flexibility: Class 2
- Cable length: 500 m
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Number of cores: 2
Description
Description
Standards
-
NationalAS/NZS 1125; AS/NZS 5000.2
- 2 & 3 core+earth flat,
- 450/750V V-90 insulated,
- 90°C PVC sheathed to AS/NZS 5000.2,
- Copper conductors.
Twin & Earth, Flats, TPS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor shape
Circular
Insulation
V-90
Outer sheath
PVC
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Number of earth cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Bending factor when installed
4 (xD)
Bending factor when laying
6 (xD)
Resources
Resources
PVC Flat With Earth - Current carrying capacities single phase (in Amps)
Copper Conductor
Insulation PVC
Maximum Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 15.0 | 14.0 | 11.0 | 7.0 | 13.0 | 10.0 | 6.0 | 17.0 |
| 1.5 | 19.0 | 18.0 | 14.0 | 9.0 | 16.0 | 13.0 | 8.0 | 21.0 |
| 2.5 | 27.0 | 26.0 | 20.0 | 13.0 | 23.0 | 19.0 | 12.0 | 30.0 |
| 4.0 | 37.0 | 34.0 | 27.0 | 17.0 | 30.0 | 24.0 | 15.0 | 39.0 |
| 6.0 | 46.0 | 44.0 | 35.0 | 22.0 | 39.0 | 31.0 | 20.0 | 50.0 |
| 10.0 | 64.0 | 60.0 | 48.0 | 30.0 | 52.0 | 42.0 | 26.0 | 66.0 |
| 16.0 | 85.0 | 80.0 | 64.0 | 40.0 | 68.0 | 54.0 | 34.0 | 86.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Underground ducts |
PVC Flat With Earth - Current carrying capacities three phase (in Amps)
Copper Conductor
Insulation PVC
Maximum Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 13.0 | 12.0 | 9.0 | 6.0 | 11.0 | 9.0 | 5.0 | 14.0 |
| 1.5 | 16.0 | 15.0 | 12.0 | 8.0 | 14.0 | 11.0 | 7.0 | 18.0 |
| 2.5 | 23.0 | 22.0 | 17.0 | 11.0 | 20.0 | 16.0 | 10.0 | 25.0 |
| 4.0 | 31.0 | 29.0 | 23.0 | 15.0 | 25.0 | 20.0 | 13.0 | 33.0 |
|
Unenclosed spaced |
|
Unenclosed touching |
|
Unenclosed and partially surrounded by thermal insulation |
|
Unenclosed and completely surrounded by thermal insulation |
|
Enclosed conduit in air |
|
Enclosed, partially surrounded by thermal insulation |
|
Enclosed, completely surrounded by thermal insulation |
|
Underground ducts |
