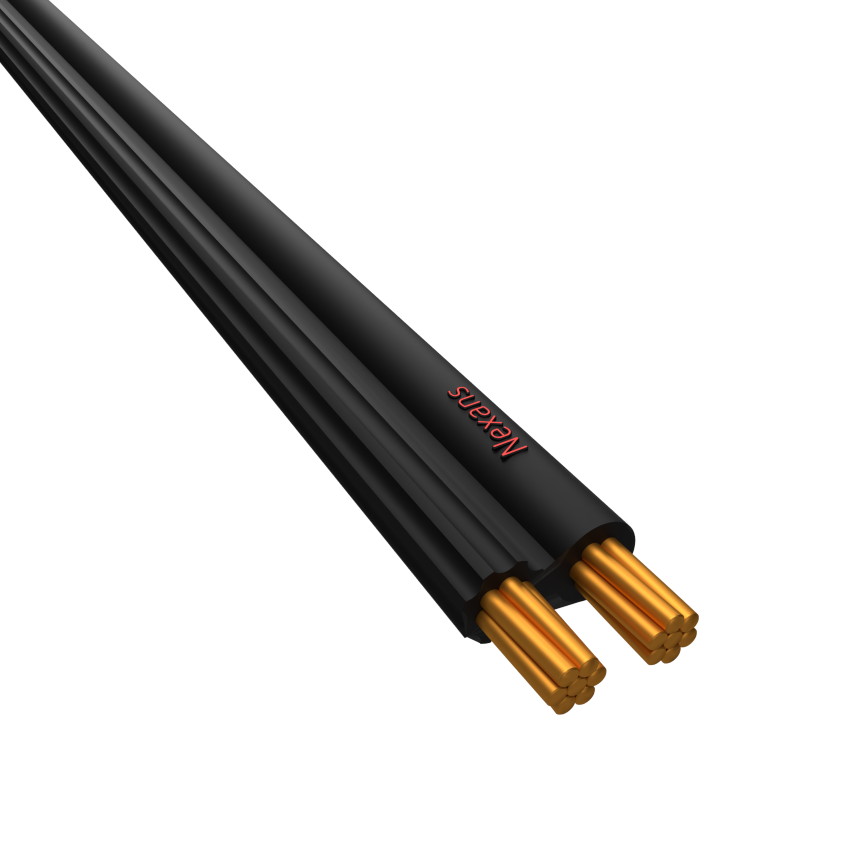

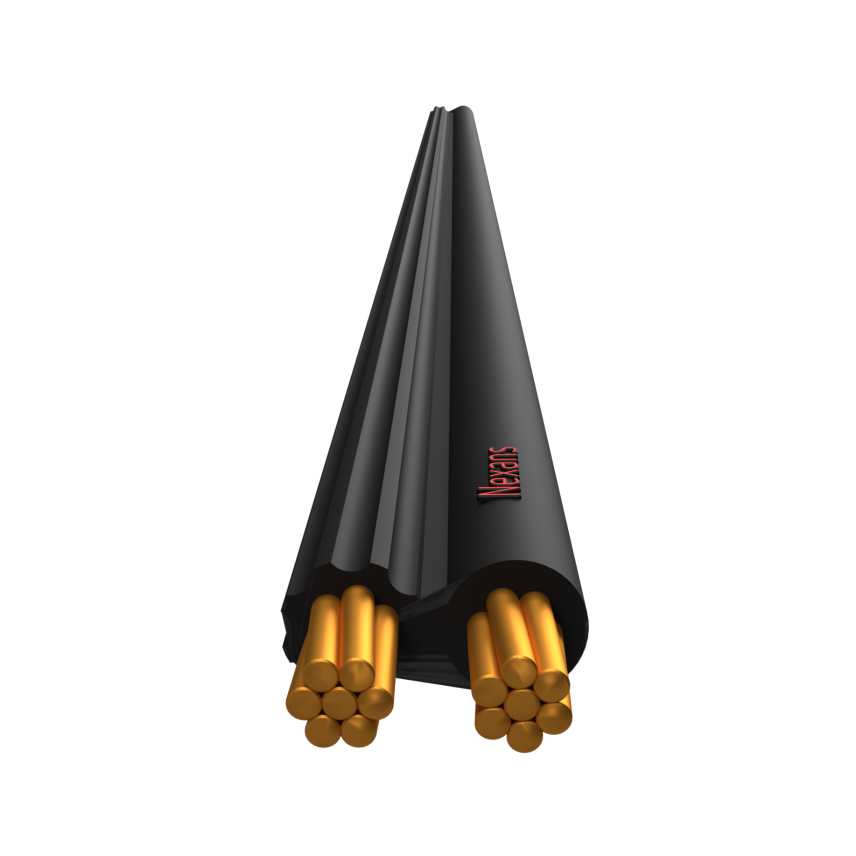

PVC Garden Lighting
PVC Garden Lighting
Stranded bare copper conductors, PVC insulated (parallel web). Designed for ELV systems at maximum 50 V AC or 120 V DC.
Read more2X1.3mm2 CU FIG8 PVC ELV
Nexans ref. JSF1.3GLBK
- Conductor cross-section: 1.3 mm²
- Voltage drop single phase at 45°C: 33.6 mV/A.m
2X1.3mm2 CU FIG8 PVC ELV 100M
Nexans ref. JSF1.3GLBK1
- Packaging: Spool (100m)
- Conductor cross-section: 1.3 mm²
- Voltage drop single phase at 45°C: 33.6 mV/A.m
2X10mm2 CU FIG8 PVC ELV
Nexans ref. JSF10GLBK
- Conductor cross-section: 10 mm²
- Voltage drop single phase at 45°C: 4.2 mV/A.m
2X2.5mm2 CU FIG8 PVC ELV
Nexans ref. JSF2.5GLBK
- Conductor cross-section: 2.5 mm²
- Voltage drop single phase at 45°C: 17.6 mV/A.m
2X2.5mm2 CU FIG8 PVC ELV 100M
Nexans ref. JSF2.5GLBK1
- Packaging: Spool (100m)
- Conductor cross-section: 2.5 mm²
- Voltage drop single phase at 45°C: 17.6 mV/A.m
2X4mm2 CU FIG8 PVC ELV
Nexans ref. JSF4GLBK
- Conductor cross-section: 4 mm²
- Voltage drop single phase at 45°C: 10.9 mV/A.m
2X4mm2 CU FIG8 PVC ELV 100M
Nexans ref. JSF4GLBK100
- Packaging: Spool (100m)
- Conductor cross-section: 4 mm²
- Voltage drop single phase at 45°C: 10.9 mV/A.m
2X6mm2 CU FIG8 PVC ELV
Nexans ref. JSF6GLBK
- Conductor cross-section: 6 mm²
- Voltage drop single phase at 45°C: 7.25 mV/A.m
2X6mm2 CU FIG8 PVC ELV 100M
Nexans ref. JSF6GLBK100
- Packaging: Spool (100m)
- Conductor cross-section: 6 mm²
- Voltage drop single phase at 45°C: 7.25 mV/A.m
Description
Description
Used for outdooor AC/DC lighting applications, Gardolex is a robust PVC insulated power cable suitable for projects of all sizes.
Stranded bare copper conductors, PVC insulated (parallel web). Designed for ELV systems at maximum 50 V AC or 120 V DC.
Note: this cable is non divisible
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Stranded
Conductor material
Plain annealed copper
Conductor shape
Circular
Insulation
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
2
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
ELV
